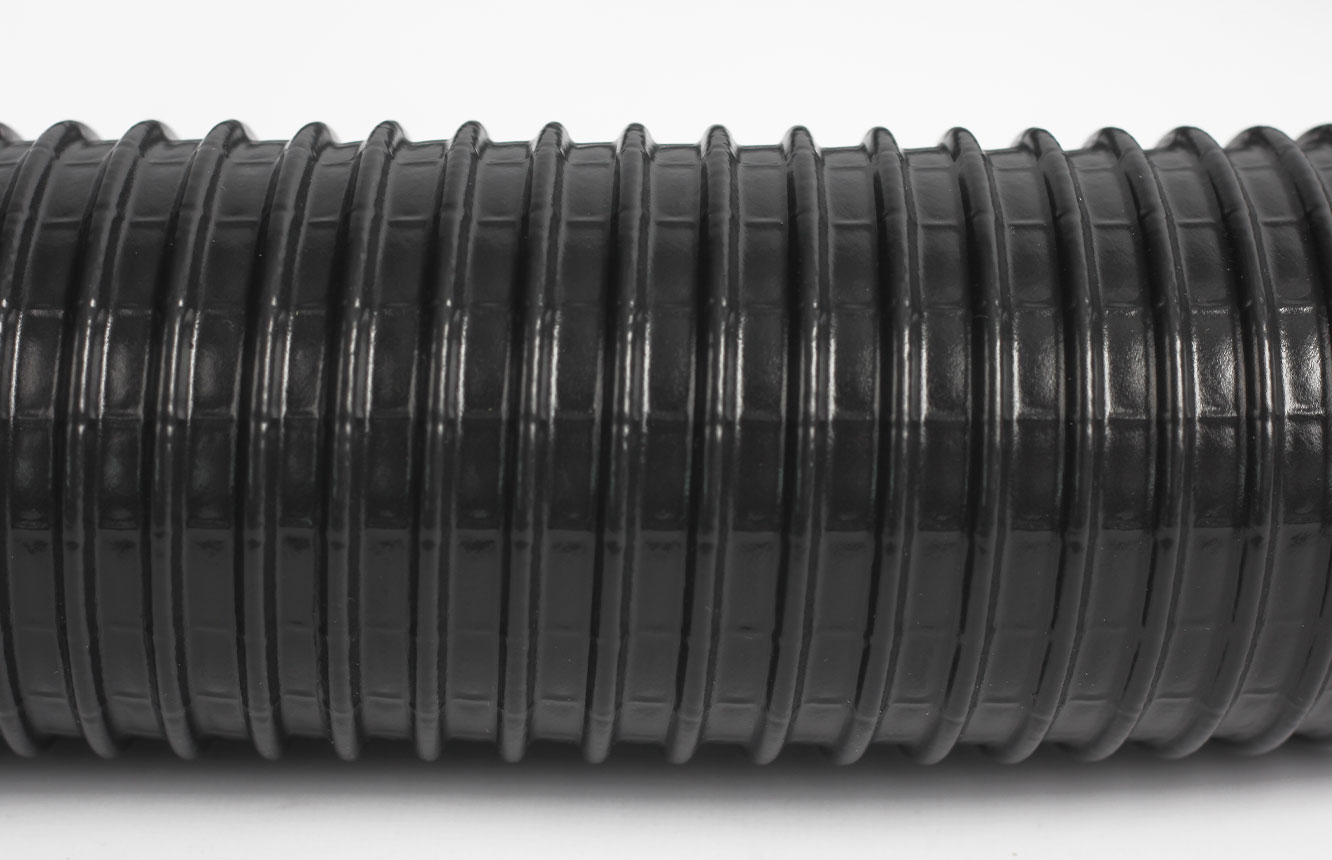

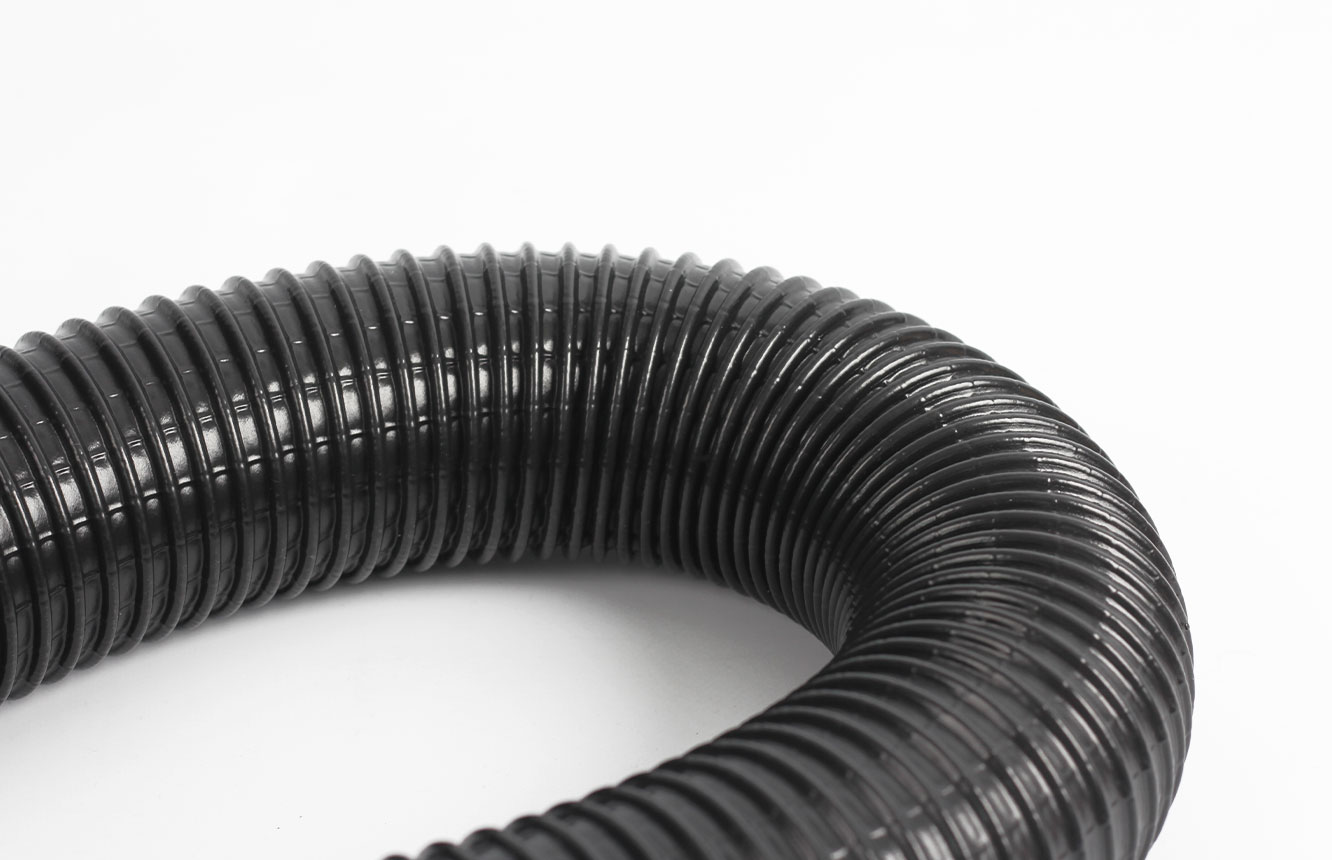

2.011 PRIMAFLEX PVC Superelastic Fireflex

Temperature Range 0°C to 85°C

Description

Versatile, highly flexible, high-tensile hose made of two layers of flame-retardant PVC with a coated spring steel spiral and additional axial and radial thread reinforcement.

UL approval
Light and heavy variants, as well as color adjustments possible

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Accesories
  • flame retardant
  • Highly flexible
  • Yarn reinforced
  • Largely smooth interior
  • Lightweight
  • Durable/long service life
  • Non-kinking
  • Very high tensile strength
  • Vacuum-resistant
  • Tear-resistant
  • Good resistance to leach and acids
  • Good UV resistance and ozone resistance
  • Good chemical resistance
  • Smallest bending radius
  • Good vacuum tightness
  • Conductive when spiral is grounded
  • Wall thickness up to Ø 70 : 0,65 mm
  • Wall thickness from Ø 76 : 0,70 mm
hochflexibel besonders zugfest 0,65mm Wandstärke Vakkumfest

Standard length: 15 m, from ø 70 = 10 m.
Other lengths upon request.

  • Universal
  • Extraction of chips and solids
  • Extraction of dusts and powders
  • Dust extraction
  • Welding fume extraction
  • Cable protection
  • Robotics
  • and much more.

The hose is available on request in many different colours, diameters and lengths.  It is also possible to inject the desired end pieces / sockets directly onto the hose.  Further individualization requests on request.

  • Wire hose clamp
  • Y-piece
  • T-piece
  • PVC end fitting
  • PVC coupling

Properties

  • flame retardant
  • Highly flexible
  • Yarn reinforced
  • Largely smooth interior
  • Lightweight
  • Durable/long service life
  • Non-kinking
  • Very high tensile strength
  • Vacuum-resistant
  • Tear-resistant
  • Good resistance to leach and acids
  • Good UV resistance and ozone resistance
  • Good chemical resistance
  • Smallest bending radius
  • Good vacuum tightness
  • Conductive when spiral is grounded
  • Wall thickness up to Ø 70 : 0,65 mm
  • Wall thickness from Ø 76 : 0,70 mm

Length

Standard length: 15 m, from ø 70 = 10 m.
Other lengths upon request.

Application Ranges

  • Universal
  • Extraction of chips and solids
  • Extraction of dusts and powders
  • Dust extraction
  • Welding fume extraction
  • Cable protection
  • Robotics
  • and much more.

Further Information

The hose is available on request in many different colours, diameters and lengths.  It is also possible to inject the desired end pieces / sockets directly onto the hose.  Further individualization requests on request.

Accesories

  • Wire hose clamp
  • Y-piece
  • T-piece
  • PVC end fitting
  • PVC coupling

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)		 Outer-Ø
(mm)		 Bending radius
(mm)		 Pressure
(bar)		 Vacuum
(bar)		 Weight
(kg/m)		 Length
(m)		 packaged unit 1
(1 box)
25 31 25 1,700 0,200 0,20 15 8 x 15 m
28 34 28 1,600 0,200 0,23 15 8 x 15 m
32 38 32 1,500 0,200 0,28 15 6 x 15 m
35 41 35 1,400 0,200 0,31 15 5 x 15 m
38 44 38 1,400 0,200 0,34 15 4 x 15 m
41 47 41 1,400 0,180 0,37 15 4 x 15 m
44 50 44 1,300 0,160 0,38 15 3 x 15 m
51 57 51 1,300 0,150 0,46 15 3 x 15 m
60 66 60 1,200 0,140 0,51 15 2 x 15 m
63 69 63 1,000 0,140 0,53 15 2 x 15 m
70 76 70 0,900 0,120 0,58 10 2 x 10 m
76 82 76 0,800 0,100 0,68 10 2 x 10 m
80 86 80 0,700 0,090 0,83 10 2 x 10 m
89 95 89 0,700 0,090 0,93 10 1 x 10 m
102 108 102 0,600 0,080 1,00 10 1 x 10 m
