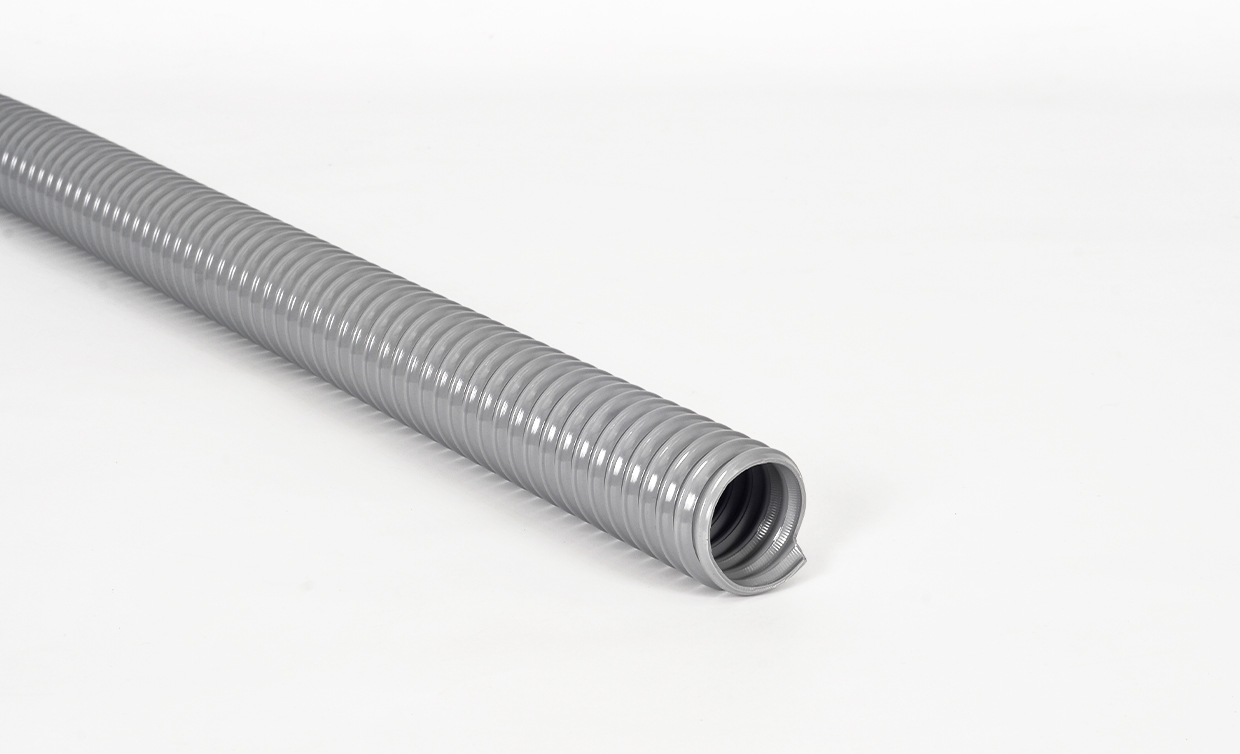

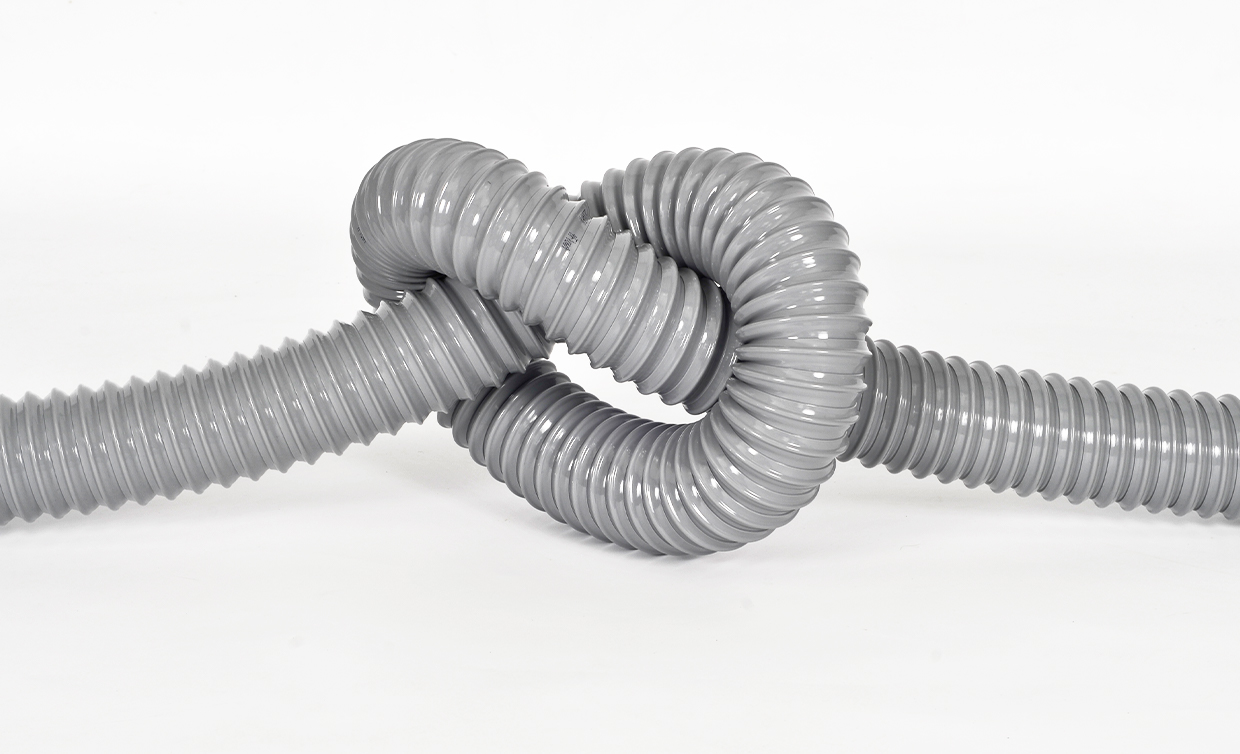

SHP Primaflex

Medium weight pressure hoses, suction hoses, and transport hoses for universal applications.

Standard length: 10 m.

Suction technology, Plant engineering, PVC hoses, Suction hoses, small shavings and solids

Standard length: 10 m.

Suction technology, Plant engineering, PVC hoses, Suction hoses, small shavings and solids

The requested information is available in the spreadsheet.

Inner-Ø (mm)	Bending radius (mm)	Pressure (bar)	Vacuum (bar)	Weight (kg/m)	Length (m)	Article-No.
30	45	2,200	0,800	0,405	10	6071030
40	60	2,100	0,600	0,540	10	6071040
50	75	1,900	0,400	0,680	10	6071050
60	90	1,600	0,350	0,700	10	6071060
70	105	1,300	0,300	0,865	10	6071070
75	110	1,200	0,300	0,940	10	6071075
80	120	1,200	0,300	0,940	10	6071080
100	150	1,000	0,250	1,340	10	6071100
125	185	0,750	0,200	1,600	10	6071125
150	225	0,500	0,180	2,060	10	6071150
175	260	0,350	0,160	2,280	10	6071175
200	300	0,300	0,150	2,760	10	6071200
250	375	0,200	0,120	3,730	10	6071250
300	450	0,150	0,100	4,740	10	6071300
350	525	0,100	0,090	5,220	10	6071350
400	600	0,100	0,080	6,300	10	6071400
450	675	0,080	0,060	6,710	10	6071450
500	750	0,050	0,040	7,480	10	6071500
