Description

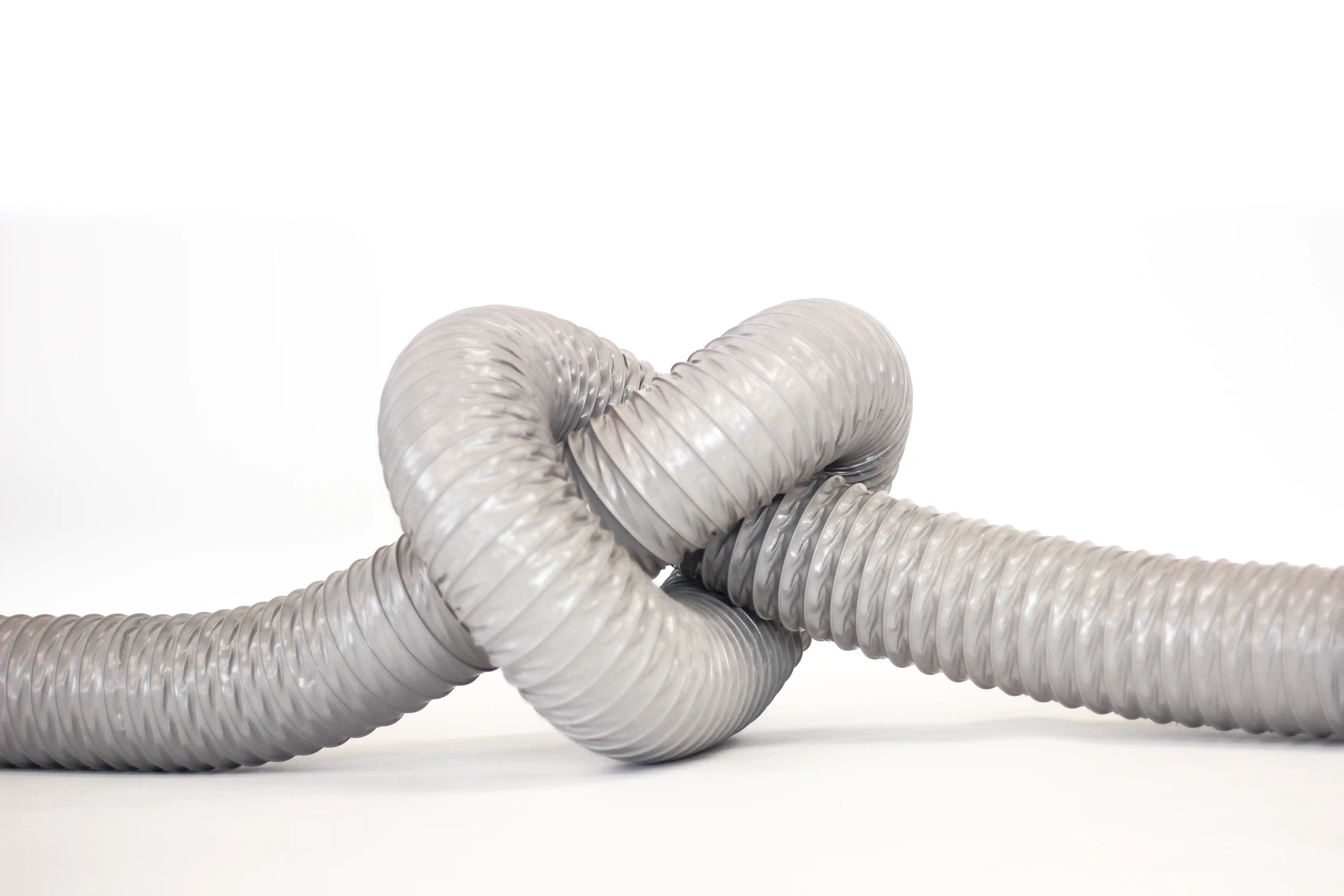

Simple, highly flexible spiral hoses in lightweight version made of very thin-walled PVC with wide-meshed polyester fabric reinforcement (3000 L) or in reinforced but still lightweight version made of PVC-coated polyester fabric (3000 S) with spiral. Suitable for conveying gaseous media.

  • Properties
  • Length
  • Application Ranges
  • Low-priced
  • Lightweight
  • Highly compressible
  • Highly flame-retardant
  • Wall thickness: 0.25 mm
hochflexibel 0,25mm Wandstärke

Standard lengths: 6 - 12 m.

Ventilation, Suction technology, PVC hoses, Exhaust air systems, Fan hose, Ventilation technology, Air-conditioning and ventilation technology, Kitchen range hood, Drying of buildings

Properties

  • Low-priced
  • Lightweight
  • Highly compressible
  • Highly flame-retardant
  • Wall thickness: 0.25 mm

Length

Standard lengths: 6 - 12 m.

Application Ranges

Ventilation, Suction technology, PVC hoses, Exhaust air systems, Fan hose, Ventilation technology, Air-conditioning and ventilation technology, Kitchen range hood, Drying of buildings

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Bending radius
(mm)
Pressure
(bar)
Vacuum
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
50 35 0,800 0,200 0,13 10 - 20 6,89 € 6012051
63 42 0,800 0,160 0,17 10 - 20 8,28 € 6012060
70 49 0,700 0,140 0,20 10 - 20 8,22 € 6012070
76 53 0,600 0,100 0,22 10 - 20 8,62 € 6012076
80 56 0,600 0,100 0,24 10 - 20 8,89 € 6012080
102 70 0,500 0,090 0,31 10 - 20 10,36 € 6012102
127 88 0,500 0,080 0,38 10 - 20 13,57 € 6012127
152 105 0,500 0,060 0,45 10 - 20 15,76 € 6012152
180 130 0,200 0,050 0,65 10 - 20 16,92 € 6012180
203 140 0,200 0,050 0,73 10 - 20 23,29 € 6012203
254 175 0,100 0,040 0,92 10 - 20 25,59 € 6012254
305 210 0,060

0,030

1,11 10 - 20 28,60 € 6012305
357 245 0,050 0,020 1,30 10 - 20 31,68 € 6012357
408 280 0,040 0,020 1,50 10 - 20 34,69 € 6012408
510 350 0,020 0,010 1,90 10 - 20 40,73 € 6012510
