2.01 PRIMAFLEX PVC Superelastic

Temperature Range 0°C to 85°C

Description

Versatile, highly flexible, two-layer PVC tubing with coated spring steel spiral and additional axial and radial yarn reinforcement.
Due to the largely smooth interior, excellent airflow properties are granted.
The structure and the special manufacturing technology give this type of hose special characteristics and make it a sought-after quality product.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Accesories
  • Highly flexible

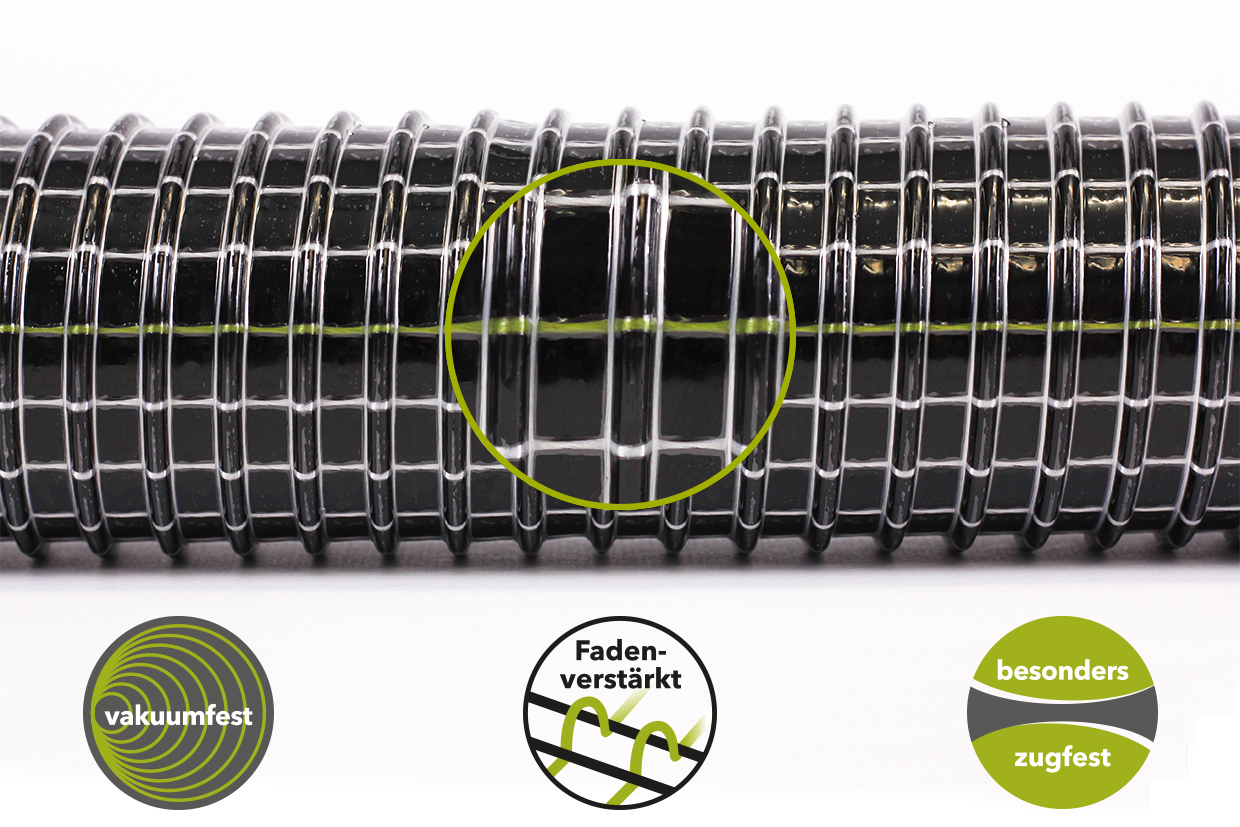

  • Yarn reinforced
  • Largely smooth interior
  • Lightweight
  • Durable/long service life
  • Non-kinking
  • Very high tensile strength
  • Vacuum-resistant
  • Tear-resistant
  • Good resistance to leach and acids
  • Good UV resistance and ozone resistance
  • Good chemical resistance
  • Smallest bending radius
  • Good vacuum tightness
  • Conductive when spiral is grounded
  • Free of cadmium in accordance with BGR 132
  • Wall thickness up to Ø 70 : 0,65 mm
  • Wall thickness from Ø 76 : 0,70 mm
Bestseller hochflexibel besonders zugfest 0,65mm Wandstärke Vakkumfest

Standard length: 15 m, from ø 70 = 10 m.
Other lengths upon request.

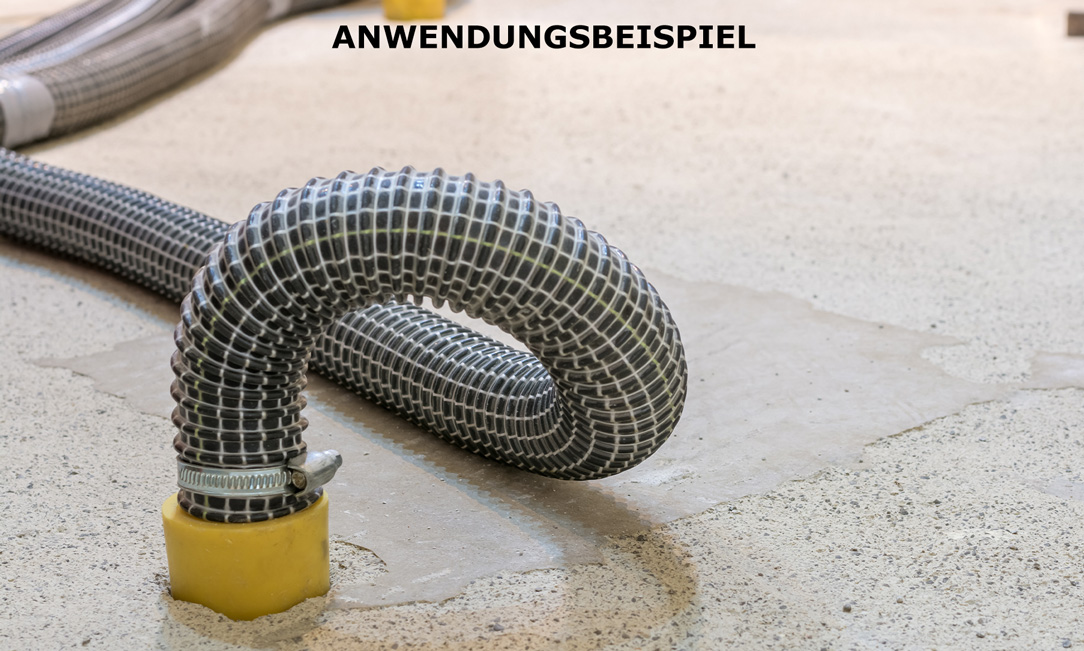

Drying of buildings, Drying screed, Weld fume suction, PVC hoses, Suction hoses, dusts and powder, Suction hoses, small shavings and solids, Dust removal, Building cleaning, Household vacuum cleaners, Industrial vacuum cleaners, Cleaning machines, Suction and pressure hose, Dust suction, Vacuum cleaners, Drying buildings, , Elastic hose, highly

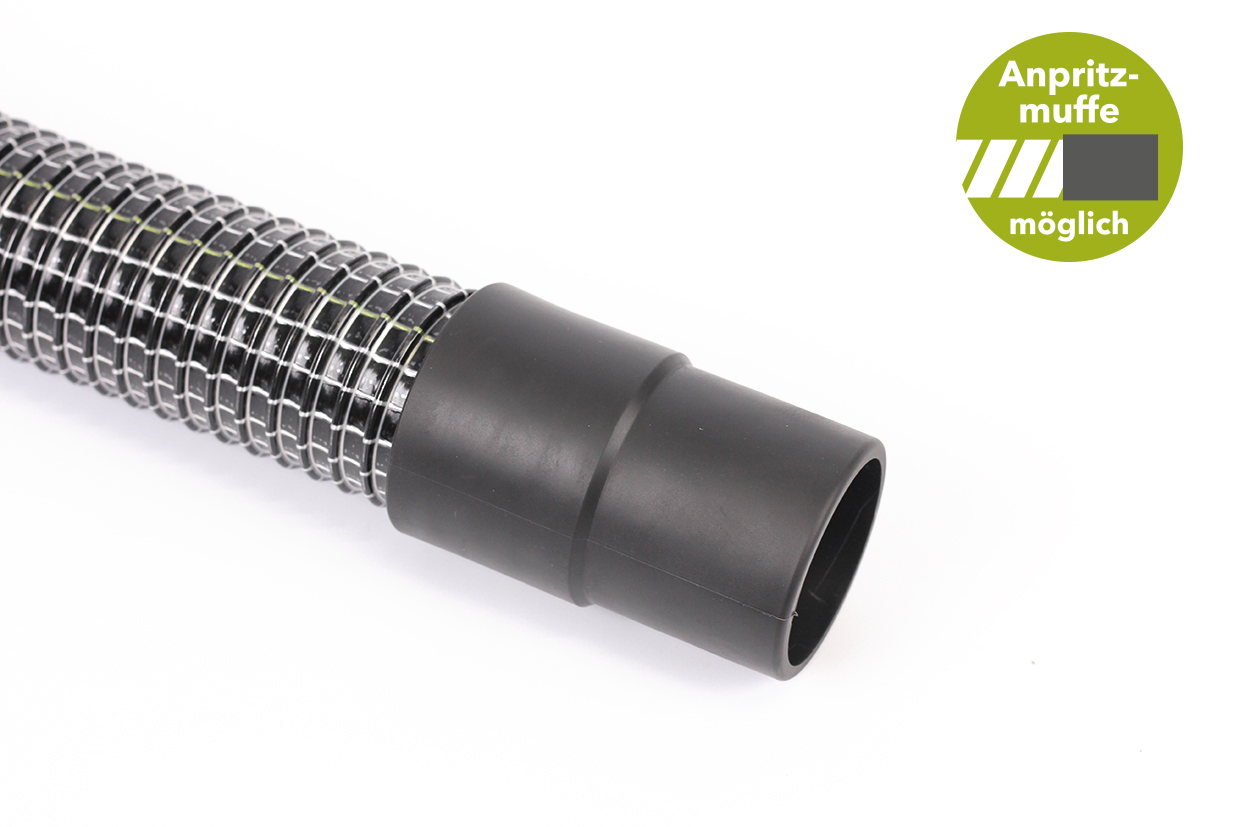

The hose is available on request in many different colours, diameters and lengths.  It is also possible to inject the desired end pieces / sockets directly onto the hose.  Further individualization requests on request.

  • Wire hose clamp
  • Y-piece
  • T-piece
  • PVC end fitting (in different variations)
  • PVC coupling
  • squeeze coupling

Properties

  • Highly flexible
  • Yarn reinforced
  • Largely smooth interior
  • Lightweight
  • Durable/long service life
  • Non-kinking
  • Very high tensile strength
  • Vacuum-resistant
  • Tear-resistant
  • Good resistance to leach and acids
  • Good UV resistance and ozone resistance
  • Good chemical resistance
  • Smallest bending radius
  • Good vacuum tightness
  • Conductive when spiral is grounded
  • Free of cadmium in accordance with BGR 132
  • Wall thickness up to Ø 70 : 0,65 mm
  • Wall thickness from Ø 76 : 0,70 mm

Length

Standard length: 15 m, from ø 70 = 10 m.
Other lengths upon request.

Application Ranges

Drying of buildings, Drying screed, Weld fume suction, PVC hoses, Suction hoses, dusts and powder, Suction hoses, small shavings and solids, Dust removal, Building cleaning, Household vacuum cleaners, Industrial vacuum cleaners, Cleaning machines, Suction and pressure hose, Dust suction, Vacuum cleaners, Drying buildings, , Elastic hose, highly

Further Information

The hose is available on request in many different colours, diameters and lengths.  It is also possible to inject the desired end pieces / sockets directly onto the hose.  Further individualization requests on request.

Accesories

  • Wire hose clamp
  • Y-piece
  • T-piece
  • PVC end fitting (in different variations)
  • PVC coupling
  • squeeze coupling

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)		 Outer-Ø
(mm)		 Bending radius
(mm)		 Pressure
(bar)		 Vacuum
(bar)		 Weight
(kg/m)		 Length
(m)		 packaged unit 1
(1 box)		 Article-No.
25 31 25 1,700 0,200 0,20 15 8 x 15 m 2011025
28 34 28 1,600 0,200 0,23 15 8 x 15 m 2011028
32 38 32 1,500 0,200 0,28 15 6 x 15 m 2011032
35 41 35 1,400 0,200 0,31 15 5 x 15 m 2011035
38 44 38 1,400 0,200 0,34 15 4 x 15 m 2011038
41 47 41 1,400 0,180 0,37 15 4 x 15 m 2011041
44 50 44 1,300 0,160 0,38 15 3 x 15 m 2011044
51 57 51 1,300 0,150 0,46 15 3 x 15 m 2011051
60 66 60 1,200 0,140 0,51 15 2 x 15 m 2011060
63 69 63 1,000 0,140 0,53 15 2 x 15 m 2011063
70 76 70 0,900 0,120 0,58 10 2 x 10 m 2011070
76 82 76 0,800 0,100 0,68 10 2 x 10 m 2011076
80 86 80 0,700 0,090 0,83 10 2 x 10 m 2011080
89 95 89 0,700 0,090 0,93 10 1 x 10 m 2011089
102 108 102 0,600 0,080 1,00 10 1 x 10 m 2011102
