Description

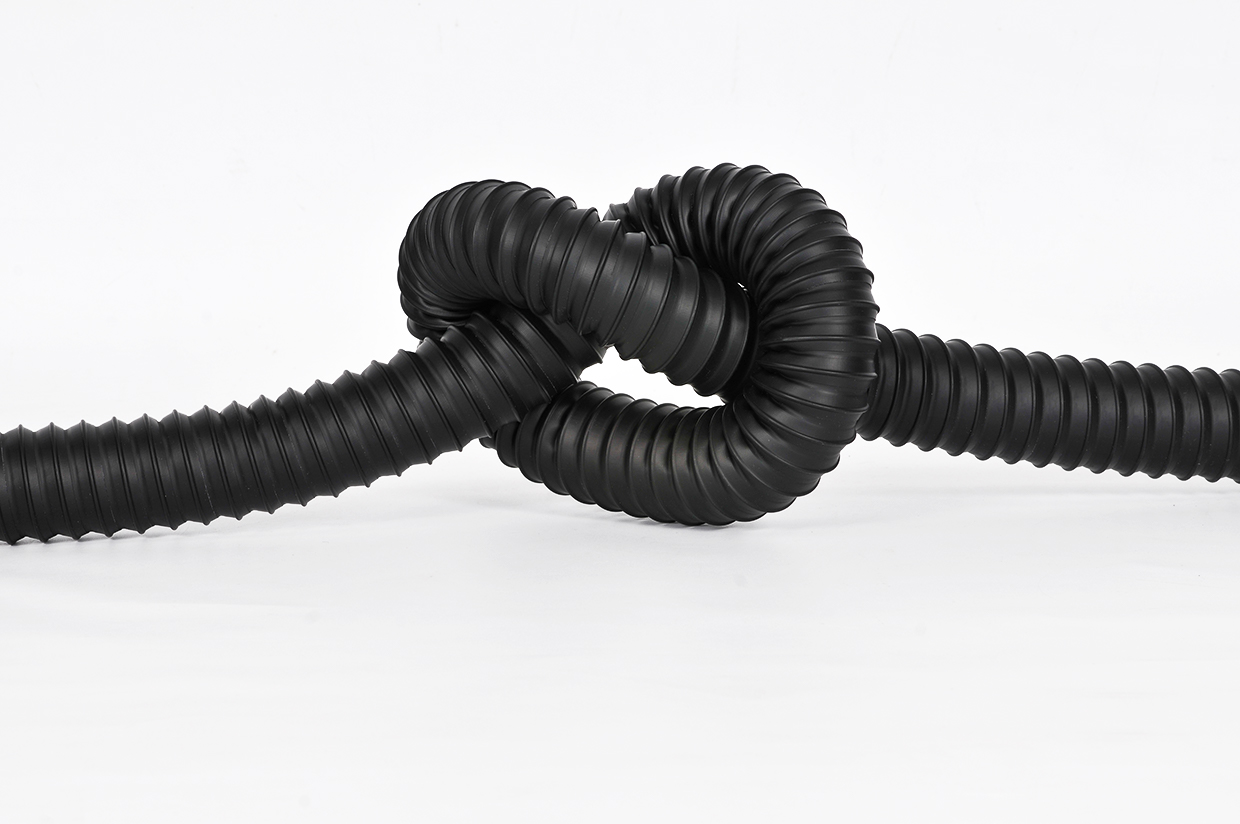

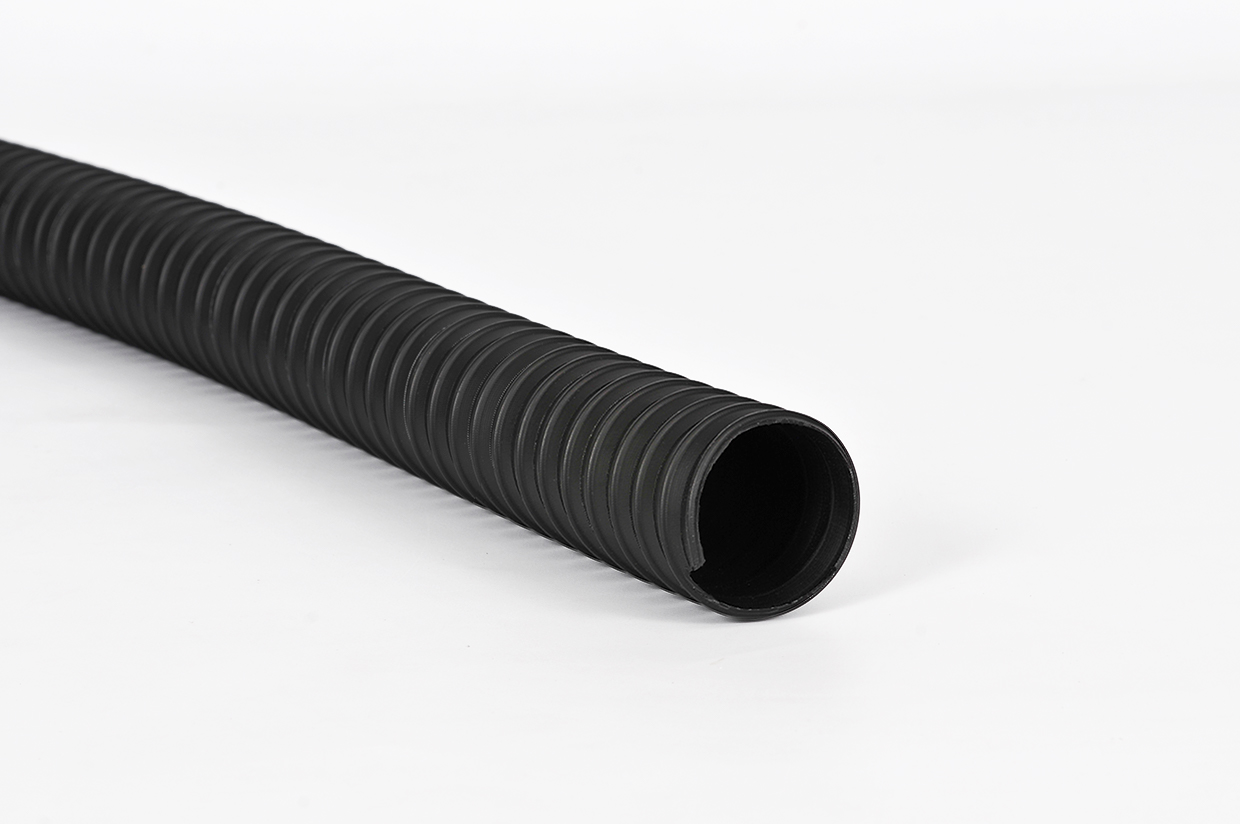

Vibration-resistant hose with EPDM (thermoplastic) coated polyester fabric with a spring steel spiral embedded in the wall. Hose can be used in a wide range of applications, particularly suitable for hot and cold air as well as gaseous and liquid media.

Universal use in medium temperature range.

  • Properties
  • Length
  • Application Ranges
  • Superior heat resistance
  • Vibration-resistant
  • Flexible
  • Largely smooth interior
  • Very lightweight
  • Non-kinking
  • Good oil and gasoline resistance
  • Good resistance to leach and acids
  • Good UV resistance and ozone resistance
  • Good chemical resistance
  • Smallest bending radii
Bestseller Vibrationsfest

Standard length: 10 m. Other lengths or diameters on request.

Plant engineering, Supply air hoses, Elastic hose, highly, Vehicle construction, Filter engine, connecting hose, Feed air intake, car, Cold-flexible hoses, Engine fresh air intake, Air-conditioning and ventilation technology, TPE hoses, Hot air

Properties

  • Superior heat resistance
  • Vibration-resistant
  • Flexible
  • Largely smooth interior
  • Very lightweight
  • Non-kinking
  • Good oil and gasoline resistance
  • Good resistance to leach and acids
  • Good UV resistance and ozone resistance
  • Good chemical resistance
  • Smallest bending radii

Length

Standard length: 10 m. Other lengths or diameters on request.

Application Ranges

Plant engineering, Supply air hoses, Elastic hose, highly, Vehicle construction, Filter engine, connecting hose, Feed air intake, car, Cold-flexible hoses, Engine fresh air intake, Air-conditioning and ventilation technology, TPE hoses, Hot air

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Bending radius
(mm)
Pressure
(bar)
Vacuum
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
40 40 0,350 0,150 0,160 10 10,50 € 6091040
50 50 0,350 0,100 0,210 10 12,50 € 6091050
60 60 0,350 0,080 0,250 10

14,14 €

6091060
70 70 0,300 0,080 0,290 10 15,97 € 6091070
75 75 0,200 0,070 0,310 10 16,88 € 6091075
80 80 0,200 0,060 0,330 10 17,79 € 6091080
100 100 0,150 0,050 0,560 10 21,44 € 6091100
125 125 0,130 0,040 0,700 10 28,39 € 6091125
150 150 0,110 0,040 0,780 10 33,14 € 6091150
175 175 0,090 0,030 0,820 10 33,16 € 6091175
200 200 0,080 0,020 1,270 10 39,99 € 6091200
250 250 0,070 0,020 1,450 10 41,88 € 6091250
300 300 0,050 0,010 1,550 10 49,32 € 6091300
350 350 0,040 0,010 1,600 10 56,5 € 6091350
400 400 0,040 0,010 1,780 10 65,34 € 6091400
450 450 0,030 0,010 2,000 10 72,78 € 6091450
500 500 0,030 0,010 2,250 10 80,22 € 6091500
