3.03 PRIMAFLEX UNI V2

Temperature range -55 °C to 150 °C

Description

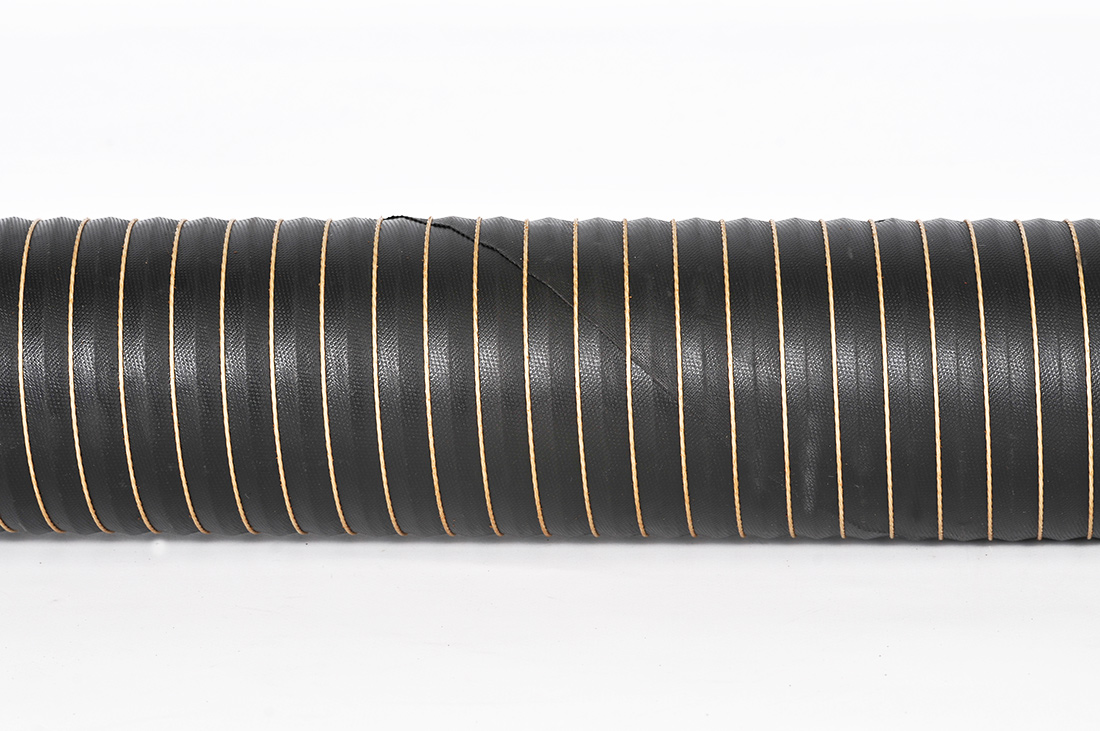

Single-ply, super-flexible, extremely light, vulcanized hose made of neoprene-coated glassfiber fabric. Internal spring steel spiral and external cord made of special yarn. A finely crafted specialist product of high quality using high-grade raw materials.
Universally deployable in medium temperature applications for hot and cold air as well as gases and vapors.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Single-ply
  • Superior heat resistance
  • Superior cold resistance
  • Super flexible, also in cold temperatures
  • High compressibility
  • Extremely lightweight
  • Non-kinking
  • Smallest bending radii
  • Installation in most narrow areas
super flexibel

Standard length: 4 m. Other lengths according to specifications.

Printing machines, Transport of hot and cold air, Plant engineering, Break cooling, Granulate Dryers, Suction technology, Suction hoses, extreme strain, High-temperature suction, Supply air hoses, Hot air,

Color: black.
Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.

Properties

  • Single-ply
  • Superior heat resistance
  • Superior cold resistance
  • Super flexible, also in cold temperatures
  • High compressibility
  • Extremely lightweight
  • Non-kinking
  • Smallest bending radii
  • Installation in most narrow areas

Length

Standard length: 4 m. Other lengths according to specifications.

Application Ranges

Printing machines, Transport of hot and cold air, Plant engineering, Break cooling, Granulate Dryers, Suction technology, Suction hoses, extreme strain, High-temperature suction, Supply air hoses, Hot air,

Further Information

Color: black.
Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)		 Outer-Ø
(mm)		 Bending radius
(mm)		 Pressure
(bar)		 Vacuum
(bar)		 Weight
(kg/m)		 Length
(m)		 Article-No.
19 22 10 1,500 0,530 0,080 2,5 1011019
22 24 11 1,500 0,530 0,085 2,5 1011022
25 29 13 1,400 0,530 0,120 4 1011025
32 35 16 1,400 0,500 0,130 4 1011032
38 41,5 19 1,400 0,500 0,165 4 1011038
41 45 21 1,200 0,480 0,180 4 1011041
44 48 22 1,200 0,440 0,190 4 1011044
51 55 26 1,200 0,440 0,250 4 1011051
57 61 29 1,100 0,400 0,280 4 1011057
60 64 30 1,100 0,400 0,290 4 1011060
63 67 32 1,100 0,400 0,300 4 1011063
65 69 33 1,100 0,380 0,340 4 1011065
70 74 35 1,100 0,350 0,395 4 1011070
76 80 38 1,000 0,350 0,410 4 1011076
80 84 40 1,000 0,320 0,440 4 1011080
83 87 42 1,000 0,300 0,470 4 1011083
89 93 45 0,900 0,295 0,495 4 1011089
95 99 48 0,900 0,270 0,540 4 1011095
102 106 51 0,900 0,260 0,570 4 1011102
110 114 55 0,800 0,230 0,690 4 1011110
114 119 57 0,800 0,210 0,730 4 1011114
121 126 61 0,800 0,190 0,760 4 1011121
127 132 64 0,800 0,170 0,805 4 1011127
140 145 70 0,800 0,150 0,885 4 1011140
152 157 76 0,600 0,140 1,050 4 1011152
160 164 80 0,600 0,130 1,060 4 1011160
165 169 83 0,600 0,120 1,080 4 1011165
180 184 90 0,600 0,110 1,220 4 1011180
203 208 102 0,500 0,070 1,380 4 1011203
229 234 115 0,300 0,060 1,557 4 1011229
254 259 127 0,200 0,040 1,727 4 1011254
305 310 152 0,100 0,030 2,073 4 1011305
