Description

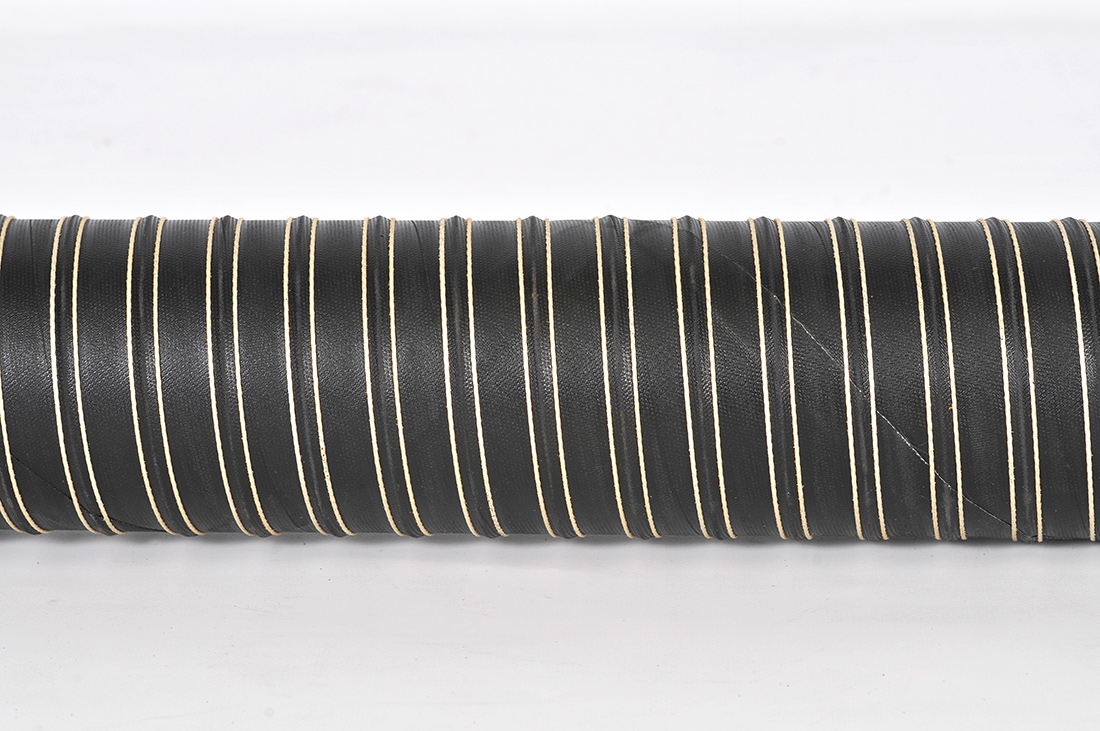

Special reinforced, lightweight, vulcanized hose made of single-ply neoprene-coated glassfiber fabric and a single layer of neoprene rubber on inside and outside. Hidden spring steel spiral and two external cords made of special yarn.
A finely crafted specialist product of high quality using high-grade raw materials.

For suction removal of chemical gases, vapors, dusts, powders, and fibers in the medium temperature range for conveying liquids under slight pressure.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Two-ply
  • Smooth interior
  • Good flow characteristics
  • Superior heat resistance
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii
Zweilagig

Standard length: 4 m. According to specifications.

Plant engineering, High-temperature suction, Heat Suction, Printing machines, Vehicle construction, Transport of hot and cold air, Gas and steam extraction, Granulate Dryers, Hot air, , Neoprene hoses, Drying Technology

Color: black.
Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.

Properties

  • Two-ply
  • Smooth interior
  • Good flow characteristics
  • Superior heat resistance
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii

Length

Standard length: 4 m. According to specifications.

Application Ranges

Plant engineering, High-temperature suction, Heat Suction, Printing machines, Vehicle construction, Transport of hot and cold air, Gas and steam extraction, Granulate Dryers, Hot air, , Neoprene hoses, Drying Technology

Further Information

Color: black.
Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Outer-Ø
(mm)
Bending radius
(mm)
Pressure
(bar)
Vacuum
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
19 22 19 2,800 0,710 0,110 2,5 21,33 € 1021019
22 25 22 2,800 0,710 0,170 2,5 24,27 € 1021022
25 30 25 2,800 0,710 0,185 4 25,15 € 1021025
32 36 32 2,700 0,600 0,280 4 16,28 € 1021032
38 43 38 2,600 0,600 0,305 4 16,57 € 1021038
41 46 41 2,600 0,600 0,310 4 17,09 € 1021041
44 49 44 2,600 0,550 0,320 4 17,60 € 1021044
51 56 51 2,600 0,520 0,360 4 18,90 € 1021051
57 62 57 2,500 0,480 0,410 4 19,40 € 1021057
60 65 60 2,400 0,470 0,455 4 20,24 € 1021060
63 68 63 2,400 0,450 0,485 4 21,21 € 1021063
65 70 65 2,100 0,450 0,505 4 21,51 € 1021065
70 75 70 2,100 0,440 0,540 4 21,84 € 1021070
76 81 76 2,100 0,430 0,580 4 23,62 € 1021076
80 85 80 2,100 0,420 0,590 4

23,80 €

1021080
83 88 83 2,100 0,410 0,630 4 24,63 € 1021083
89 94 89 2,000 0,400 0,690 4 25,47 € 1021089
95 99 95 1,900 0,370 0,730 4 26,82 € 1021095
102 107 102 1,900 0,350 0,770 4 27,97 € 1021102
110 116 110 1,700 0,320 0,820 4 29,02 € 1021110
114 120 114 1,500 0,300 0,845 4 29,57 € 1021114
121 127 121 1,500 0,230 0,885 4 30,78 € 1021121
127 133 127 1,400 0,240 0,925 4 31,86 € 1021127
140 146 140 1,300 0,200 1,000 4 34,37  € 1021140
152 158 152 1,200 0,170 1,200 4 36,61 € 1021152
160 166 160 1,200 0,150 1,280 4 38,47 € 1021160
165 171 165 1,100 0,140 1,320 4 39,92 € 1021165
180 186 180 1,000 0,120 1,480 4 44,44 € 1021180
203 209 203 0,700 0,090 1,650 4 49,63 € 1021203
229 235 229 0,500 0,080 1,900 4 56,25€ 1021229
254 260 254 0,500 0,070 2,090 4 60,70 € 1021254
305 311 305 0,300 0,050 2,610 4 67,69 € 1021305
