3.05 PRIMAFLEX UNI M2L

Temperature range -55 °C to 150 °C

Description

Non-flammable, very light and flexible air transport hose.
The hose can be manufactured in a wide variety of shapes (round, oval, rectangular and square).

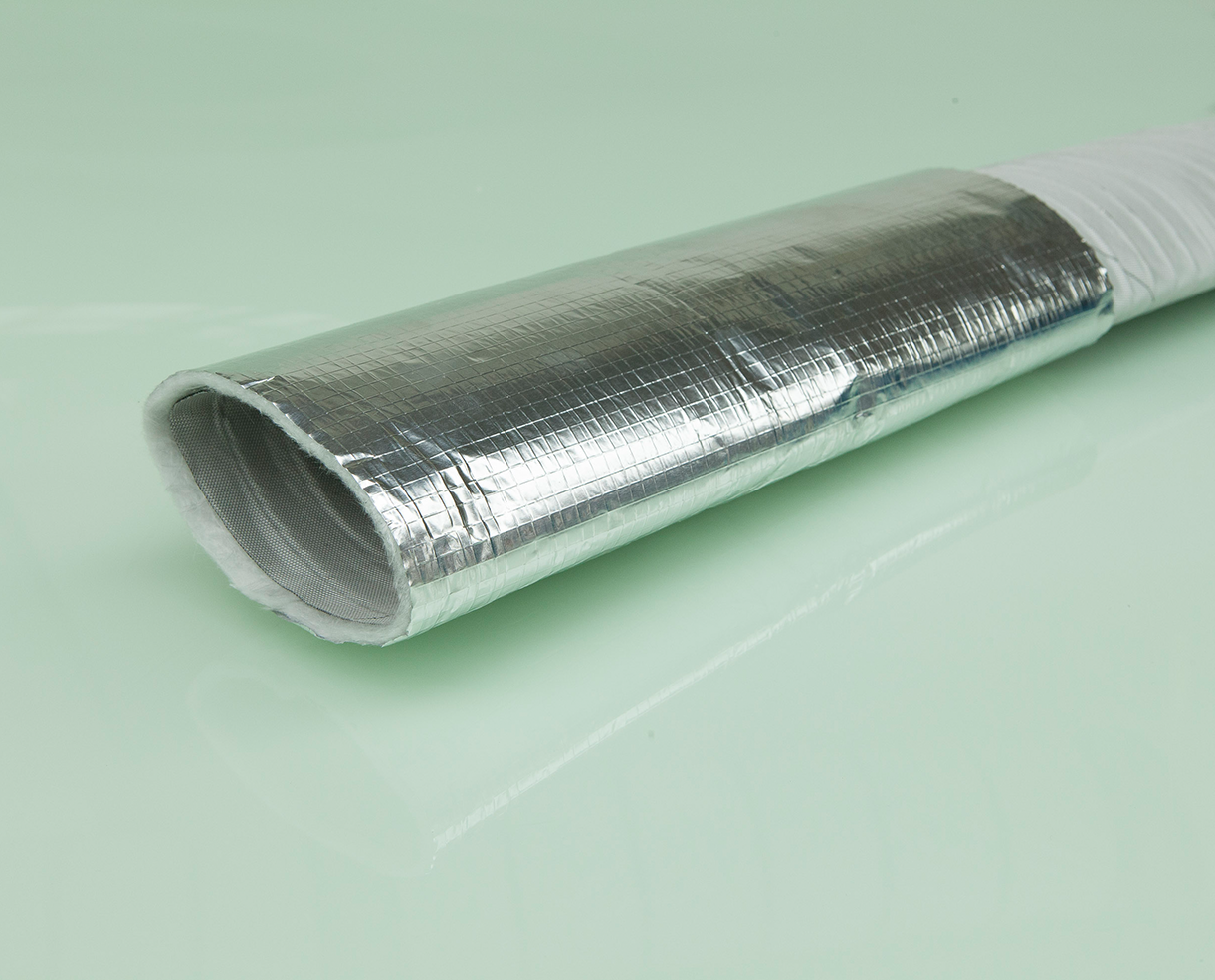

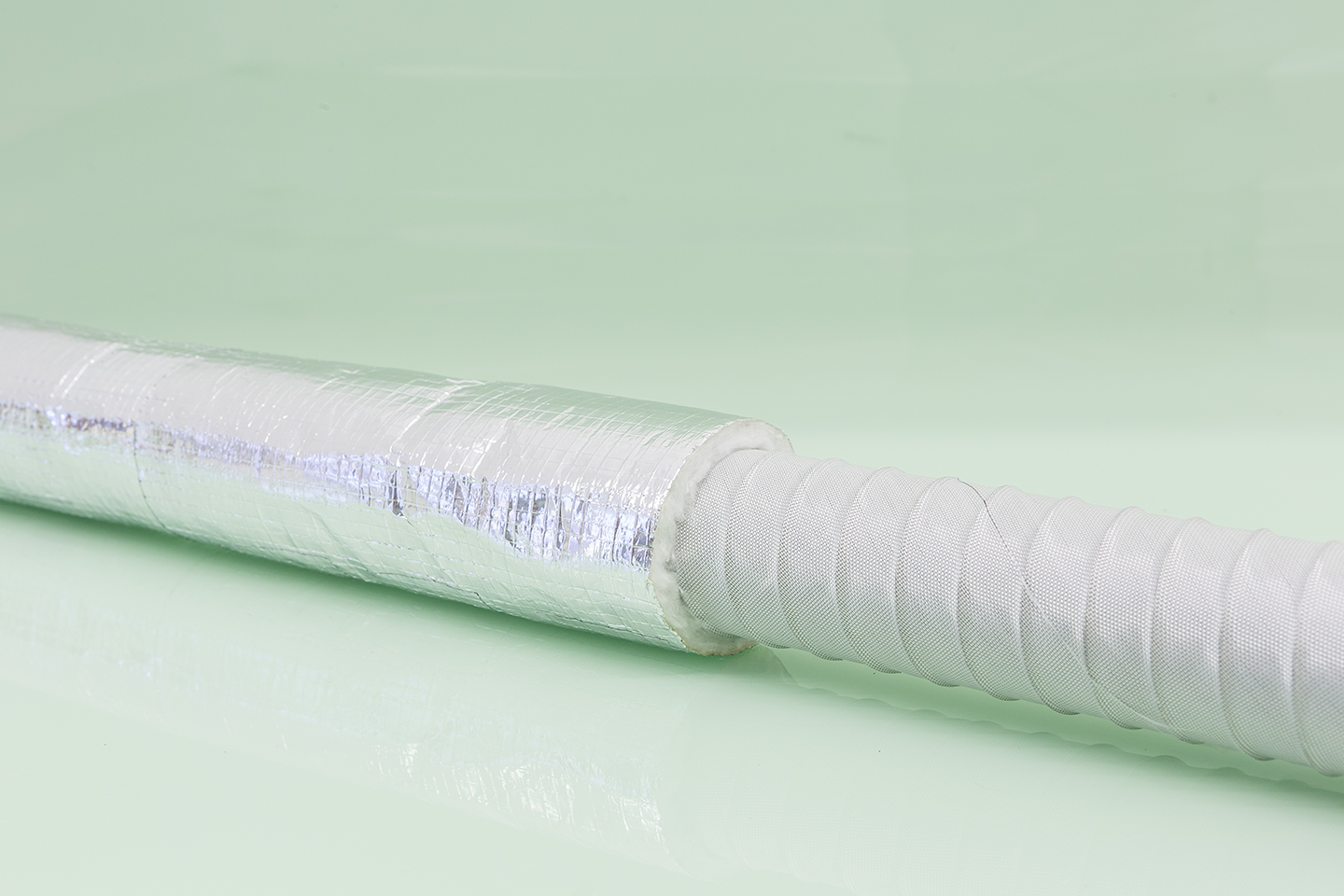

In addition, we can insulate the hose from various materials, depending on the application, and provide it with suitable connectors.

Universally applicable in the medium temperature range for hot and cold air.

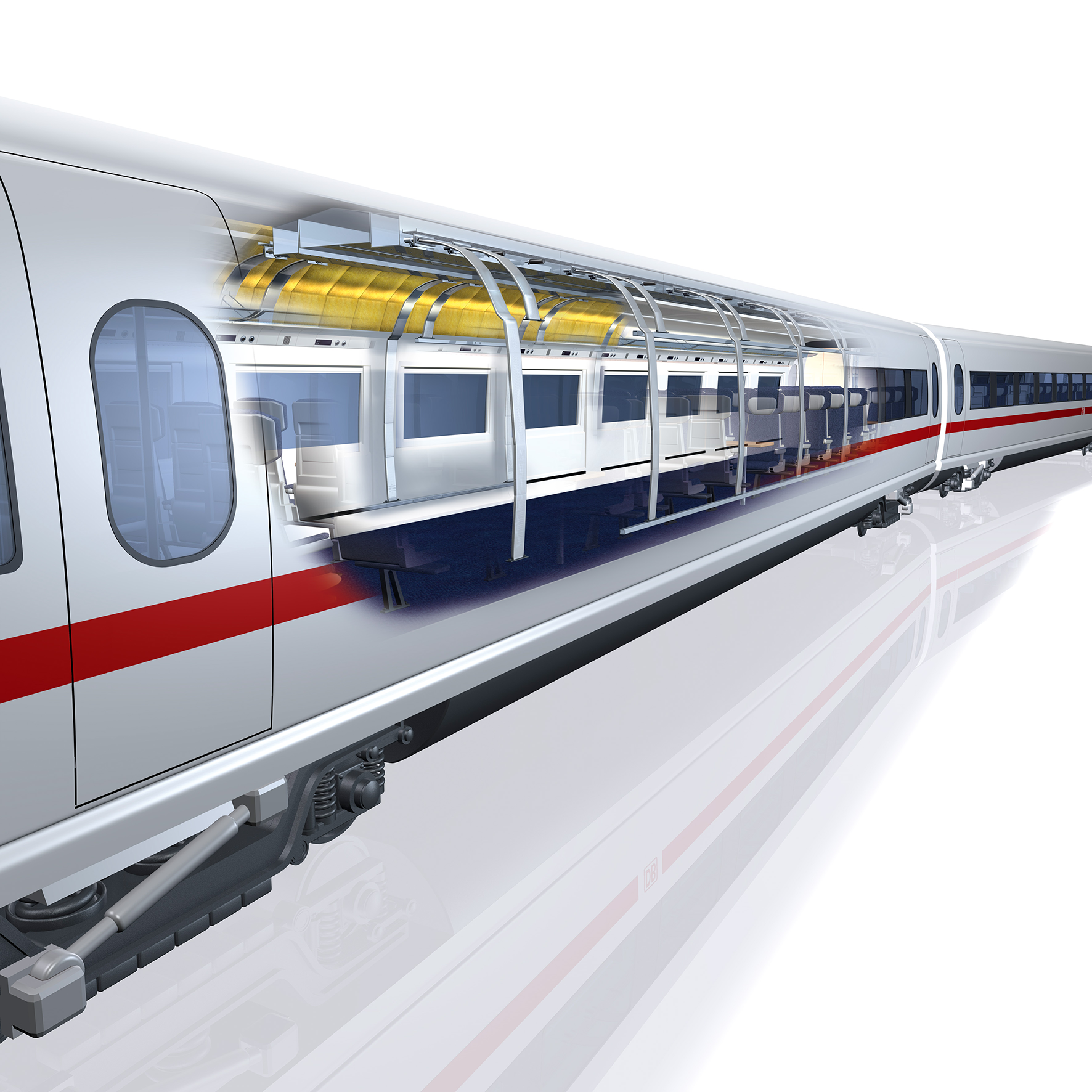

Very suitable for air ducting in rail vehicles.
Certified to EN 45545, HL3.

  • Properties
  • Length
  • Further Information
  • Two-ply
  • Smooth interior
  • Good flow characteristics
  • Highly flame-retardant
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii
Zweilagig

Standard length: 4 m. According to specifications.

Color: silver.
Highly flame-retardant, nonflammable.
Approvals: EN 45545, HL3

Properties

  • Two-ply
  • Smooth interior
  • Good flow characteristics
  • Highly flame-retardant
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii

Length

Standard length: 4 m. According to specifications.

Further Information

Color: silver.
Highly flame-retardant, nonflammable.
Approvals: EN 45545, HL3

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)		 Outer-Ø
(mm)		 Bending radius
(mm)		 Pressure
(bar)		 Vacuum
(bar)		 Weight
(kg/m)		 Length
(m)		 Article-No.
19 22 19 1,700 0,530 0,110 2,5 1061019
22 25 22 1,700 0,530 0,170 2,5 1061022
25 30 25 1,700 0,530 0,85 4 1061025
32 36 32 1,600 0,500 0,280 4 1061032
38 43 38 1,400 0,500 0,305 4 1061038
41 46 44 1,400 0,500 0,310 4 1061041
44 49 44 1,300 0,500 0,320 4 1061044
51 56 51 1,200 0,440 0,360 4 1061051
57 62 57 1,200 0,400 0,450 4 1061057
60 65 60 1,200 0,400 0,460 4 1061060
63 68 63 1,100 0,400 0,485 4 1061063
65 70 63 1,100 0,400 0,520 4 1061065
70 75 70 1,100 0,350 0,540 4 1061070
76 81 76 1,100 0,350 0,580 4 1061076
80 85 80 1,100 0,350 0,605 4 1061080
83 88 83 1,100 0,260 0,630 4 1061083
89 94 89 1,100 0,260 0,690 4 1061089
95 100 95 1,100 0,260 0,730 4 1061095
102 107 102 0,900 0,260 0,770 4 1061102
110 116 110 0,900 0,200 0,820 4 1061110
114 120 114 0,900 0,200 0,845 4 1061114
121 127 121 0,900 0,180 0,885 4 1061121
127 133 127 0,900 0,160 0,925 4 1061127
140 146 140 0,800 0,150 1,000 4 1061140
152 158 152 0,800 0,140 1,200 4 1061152
160 166 160 0,800 0,130 1,300 4 1061160
165 171 165 0,800 0,120 1,380 4 1061165
178 184 178 0,700 0,100 1,430 4 1061178
203 209 203 0,500 0,070 1,650 4 1061203
229 235 229 0,500 0,060 1,850 4 1061229
254 260 254 0,400 0,050 2,090 4 1061254
305 311 305 0,100 0,030 2,610 4 1061305
