Description

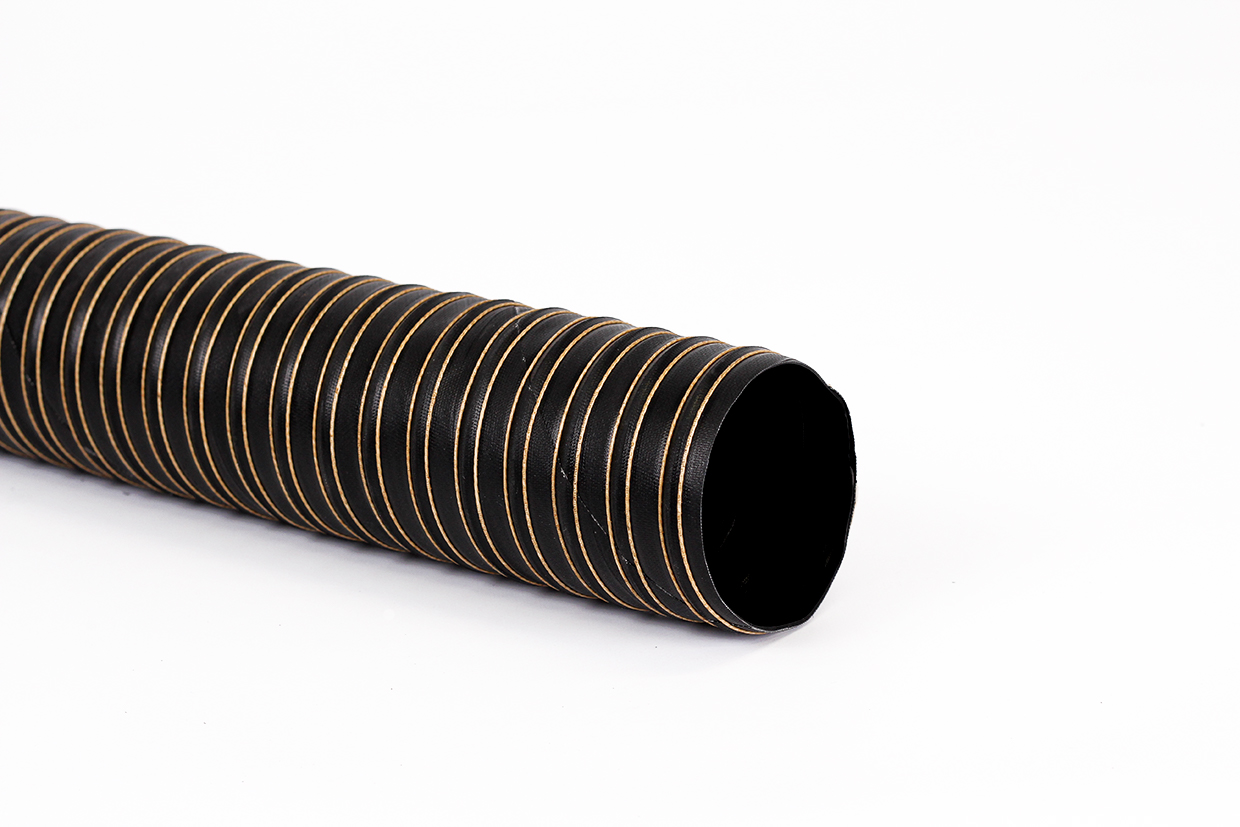

Two-ply, special reinforced, lightweight, vulcanized hose made of an external ply of neoprenecoated glass-fiber fabric and an internal ply of neoprene rubber. Hidden spring steel spiral and two external cords made of special yarn.
A finely crafted specialist product of high quality using high-grade raw materials.

For suction removal of chemical gases, vapors, dusts, powders, and fibers in the medium temperature range for conveying liquids under slight pressure.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Two-ply
  • Smooth interior
  • Good flow characteristics
  • Superior heat resistance
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii
Zweilagig Versträkte Ausführung

Standard length: 4 m. According to specifications.

Plant engineering, High-temperature suction, Ventilation, Heat Suction, Superheated steam, Hot air, Cold-flexible hoses

Color: black.

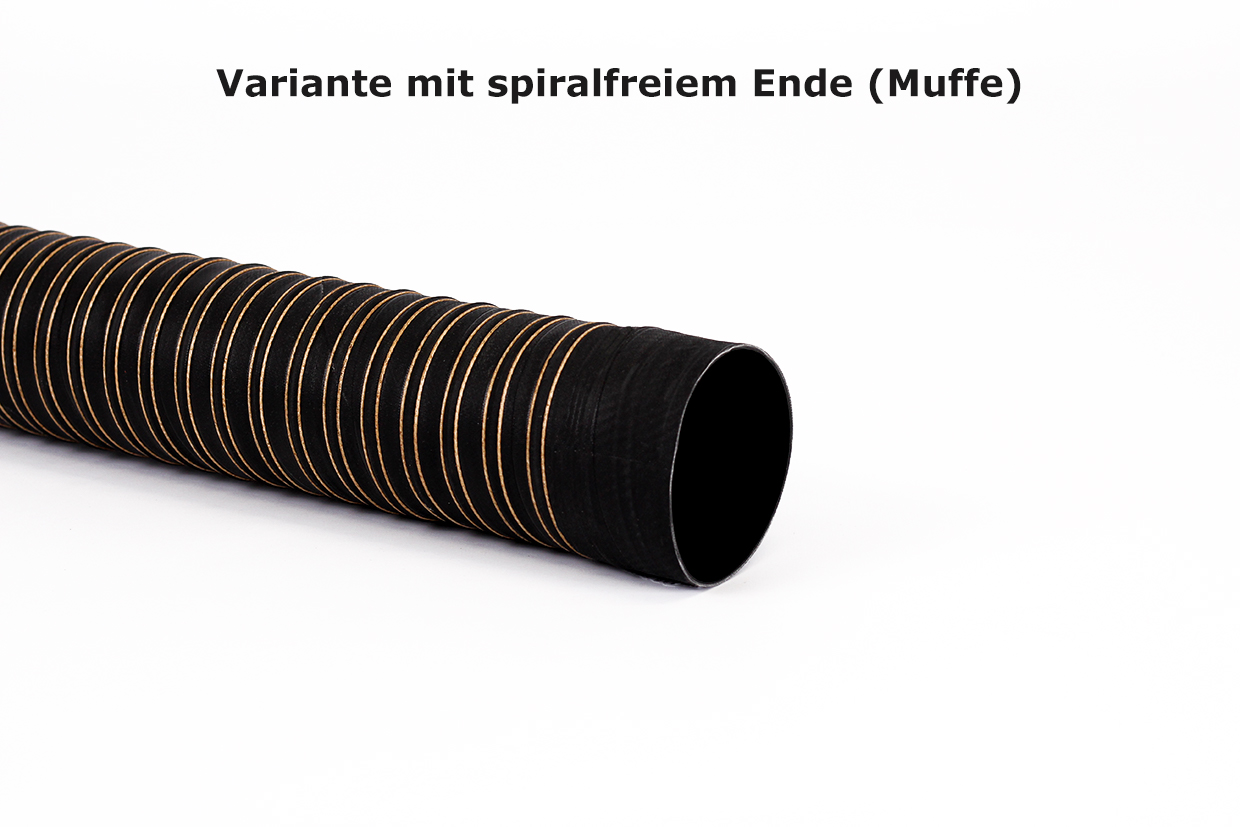

Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.

Properties

  • Two-ply
  • Smooth interior
  • Good flow characteristics
  • Superior heat resistance
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii

Length

Standard length: 4 m. According to specifications.

Application Ranges

Plant engineering, High-temperature suction, Ventilation, Heat Suction, Superheated steam, Hot air, Cold-flexible hoses

Further Information

Color: black.
Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Outer-Ø
(mm)
Bending radius
(mm)
Pressure
(bar)
Vacuum
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
19 25 19 1,700 0,530 0,150 2,5 23,10 € 1031019
22 27 22 1,700 0,530 0,160 2,5 27,05 € 1031022
25 30 25 1,700 0,530 0,190 4 28,28 € 1031025
32 36 32 1,600 0,500 0,230 4 18,71 € 1031032
38 43 38 1,400 0,500 0,260 4 19,27 € 1031038
41 46 41 1,400 0,500 0,280 4 19,98 € 1031041
44 49 44 1,300 0,500 0,280 4 20,70 € 1031044
51 56 51 1,200 0,440 0,370 4 22,32 € 1031051
57 62 57 1,200 0,400 0,450 4 23,21 € 1031057
60 65 60 1,200 0,400 0,480 4 24,25 € 1031060
63 68 63 1,100 0,400 0,495 4 25,30 € 1031063
65 70 65 1,100 0,400 0,510 4 25,73 € 1031065
70 75 70 1,100 0,350 0,555 4 26,36 € 1031070
76 81 76 1,100 0,350 0,680 4 28,44 € 1031076
80 85 80 1,100 0,270 0,700 4 28,87 € 1031080
83 88 83 1,100 0,260 0,720 4 29,83 € 1031083
89 94 89 1,100 0,260 0,730 4 31,02 € 1031089
95 100 95 1,000 0,260 0,765 4 32,74 € 1031095
102 107 102 0,900 0,260 0,780 4 75,66 € 1031102
110 116 110 0,900 0,250 0,860 4 88,61 € 1031110
114 120 114 0,900 0,200 0,885 4 36,54 € 1031114
121 127 121 0,900 0,180 0,945 4 38,11 € 1031121
127 133 127 0,900 0,160 1,000 4 39,56 € 1031127
140 136 140 0,800 0,150 1,095 4 42,81 € 1031140
152 159 152 0,800 0,140 1,210 4 45,67 € 1031152
160 166 160 0,800 0,130 1,305 4 48,00 € 1031160
165 171 165 0,700 0,120 1,410 4 49,76 € 1031165
178 188 178 0,600 0,100 1,500 4 54,18 € 1031178
203 211 203 0,500 0,070 1,660 4 61,62 € 1031203
229 237 229 0,400 0,060 1,870 4 69,75 € 1031229
254 262 254 0,400 0,050 2,100 4 68,93 € 1031254
305 313 305 0,100 0,030 2,550 4 77,99 € 1031305
