Description

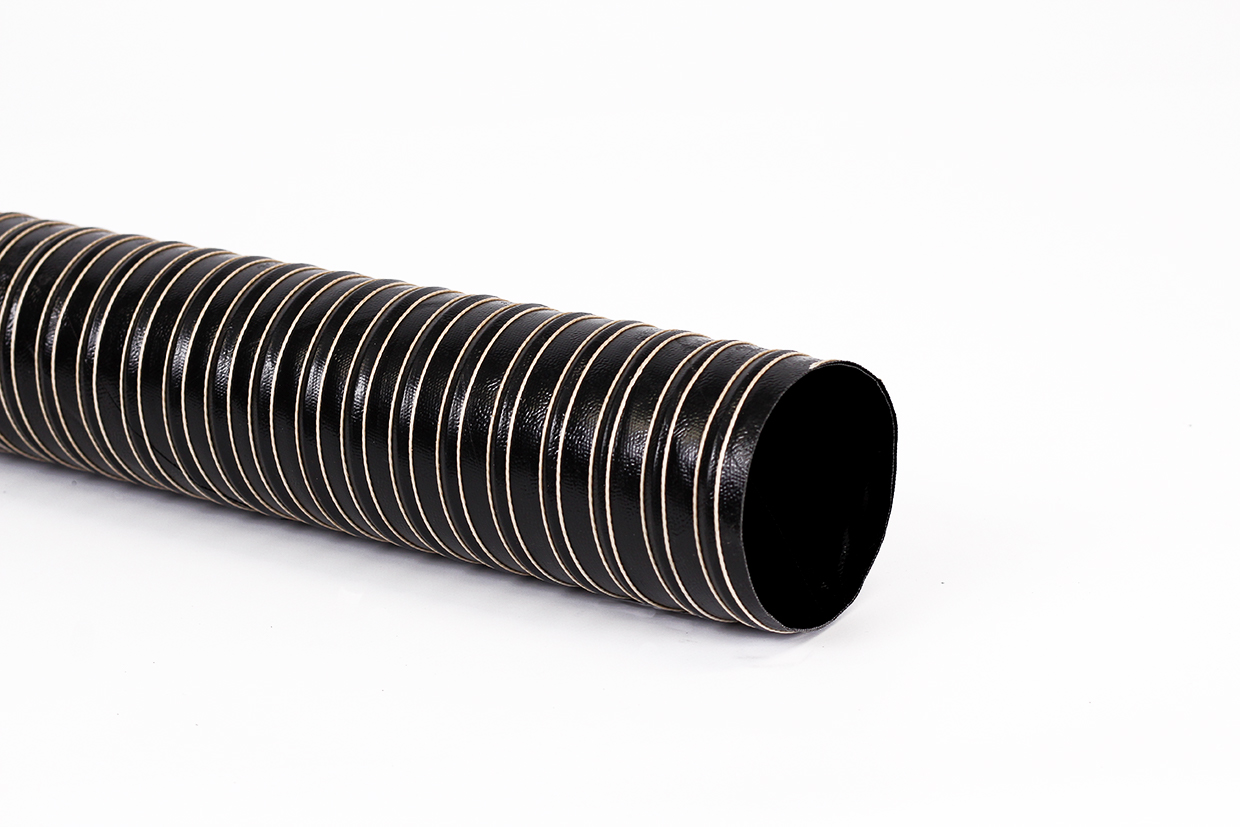

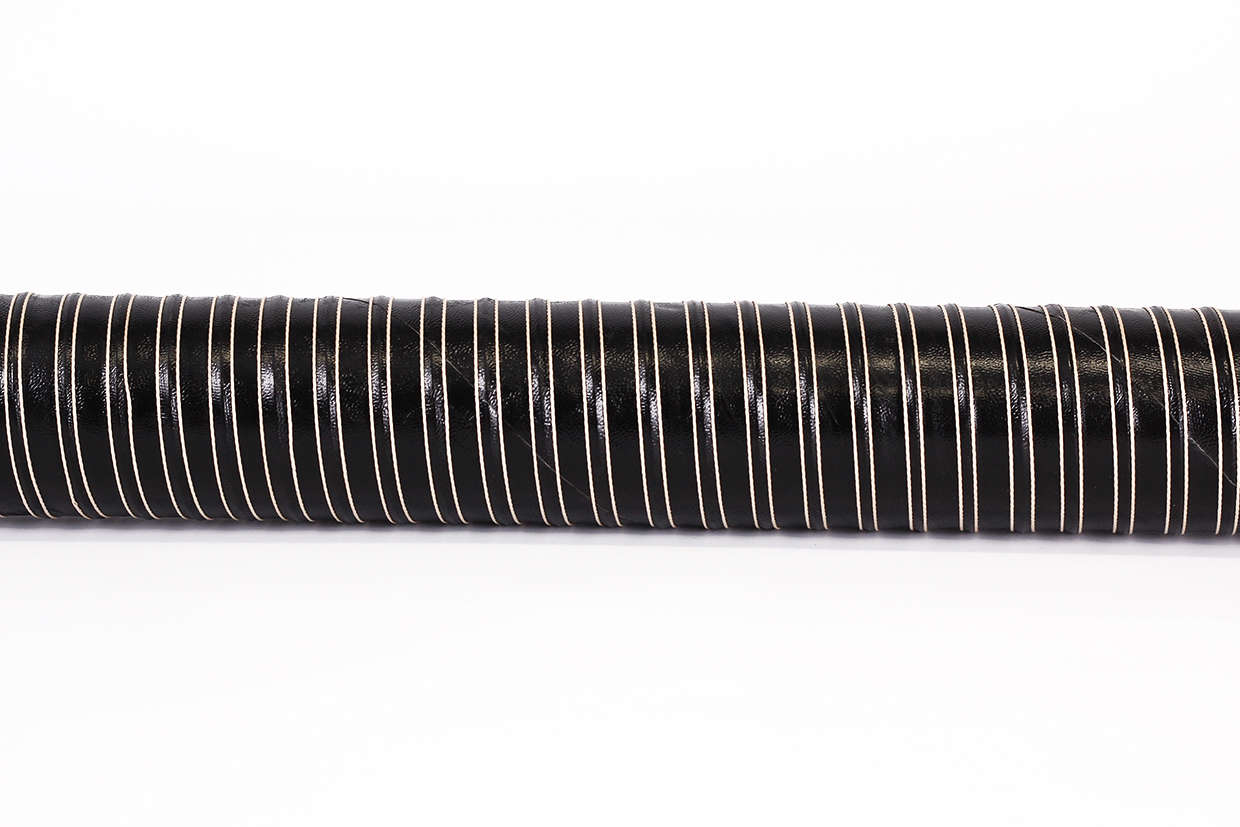

Two-ply, highly flexible, very lightweight, vulcanized hose made of Hypalon®-coated glassfiber fabric. Hidden internal spring steel spiral and two external cords made of special yarn.
A finely crafted specialist product of high quality using high-grade raw materials.

Highly suitable in medium temperature range for conveying hot moist air, steam, chemical vapors and aggressive gases, dusts, powders, and fibers.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Two-ply
  • Smooth interior
  • Good flow characteristics
  • Good chemical resistance
  • UV-resistant
  • Superior heat resistance
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii
Zweilagig UV beständig

Standard length: 4 m. According to specifications.

Plant engineering, Heat Suction, Suction hoses, extreme strain, Suction hoses, air and gaseous media, High-temperature suction, Transport of hot and cold air, Gas and steam extraction, Superheated steam, Hot air, Cold-flexible hoses, Paper factories, Paper industry

Color: black.

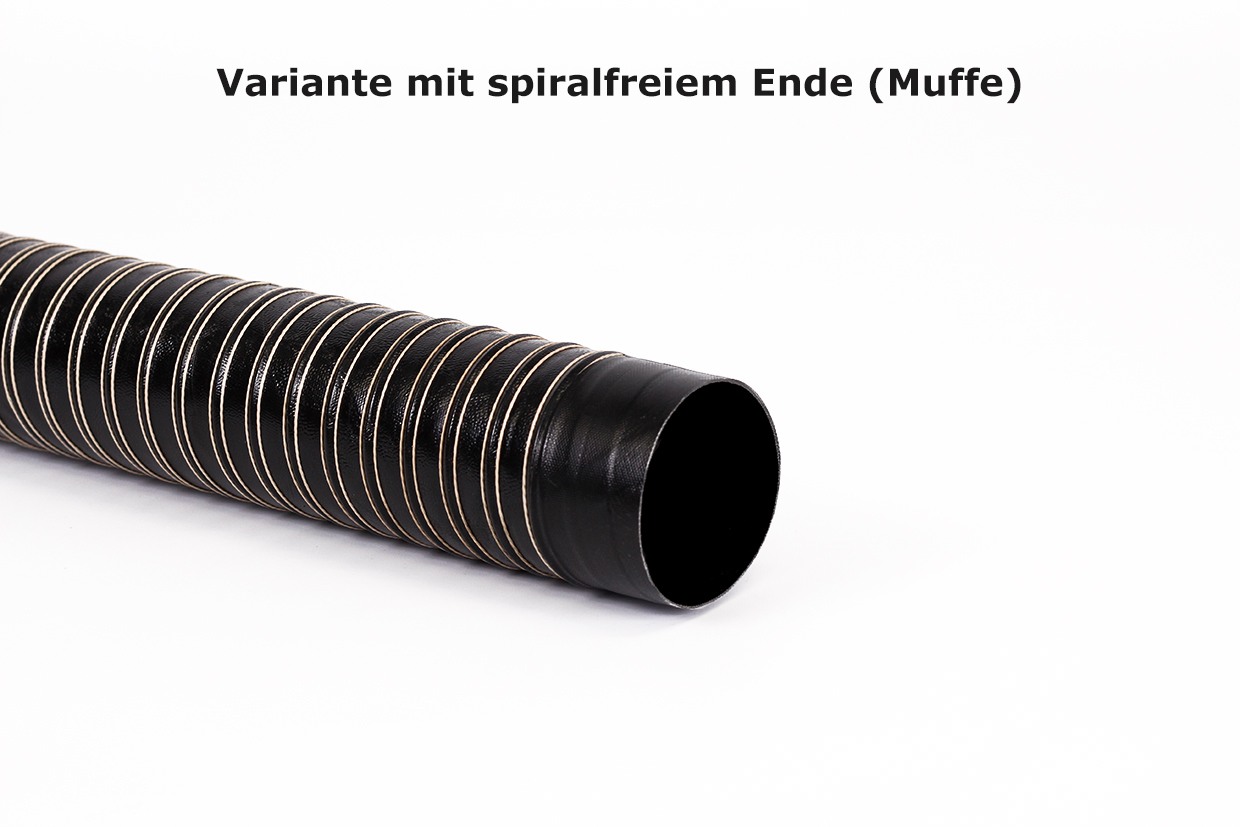

Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.
Hypalon®: a registered trademark of DuPont Dow Elastomers.

Properties

  • Two-ply
  • Smooth interior
  • Good flow characteristics
  • Good chemical resistance
  • UV-resistant
  • Superior heat resistance
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii

Length

Standard length: 4 m. According to specifications.

Application Ranges

Plant engineering, Heat Suction, Suction hoses, extreme strain, Suction hoses, air and gaseous media, High-temperature suction, Transport of hot and cold air, Gas and steam extraction, Superheated steam, Hot air, Cold-flexible hoses, Paper factories, Paper industry

Further Information

Color: black.
Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.
Hypalon®: a registered trademark of DuPont Dow Elastomers.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Outer-Ø
(mm)
Bending radius
(mm)
Pressure
(bar)
Vacuum
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
19 22 19 2,800 0,650 0,190 2,5 22,64 € 1071019
22 25 22 2,800 0,650 0,210 2,5 26,35 € 1071022
25 30 25 2,800 0,650 0,230 4 27,49 € 1071025
32 36 32 2,700 0,600 0,280 4 18,13 € 1071032
38 43 38 2,600 0,600 0,305 4 18,63 € 1071038
41 46 41 2,600 0,550 0,310 4 19,30 € 1071041
44 49 44 2,600 0,550 0,320 4 19,97 € 1071044
51 56 51 2,600 0,520 0,360 4 21,55 € 1071051
57 62 57 2,500 0,490 0,430 4 22,36 € 1071057
60 65 60 2,500 0,490 0,470 4 23,27 € 1071060
63 68 63 2,400 0,450 0,485 4 24,39 € 1071063
65 70 65 2,400 0,450 0,500 4 24,78 € 1071065
70 75 70 2,100 0,440 0,540 4 25,36 € 1071070
76 81 76 2,100 0,430 0,580 4 27,38 € 1071076
80 85 80 2,100 0,430 0,620 4 27,75 € 1071080
83 88 83 2,100 0,410 0,630 4 28,69 € 1071083
89 94 89 2,000 0,400 0,690 4 29,81 € 1071089
95 99 95 2,000 0,370 0,730 4 31,45 € 1071095
102 107 102 1,900 0,350 0,770 4 32,89 € 1071102
110 116 110 1,700 0,330 0,830 4 34,28 € 1071110
114 120 114 1,500 0,300 0,845 4 35,03 € 1071114
121 127 121 1,500 0,230 0,885 4 36,54 € 1071121
127 133 127 1,400 0,230 0,925 4 37,90 € 1071127
140 146 140 1,300 0,200 1,000 4 40,99 € 1071140
152 158 152 1,200 0,170 1,200 4 43,73 € 1071152
160 166 160 1,100 0,140 1,300 4 45,96 € 1071160
165 171 165 1,100 0,130 1,350 4 47,64 € 1071165
178 186 180 1,000 0,120 1,430 4 51,93 € 1071178
203 209 203 0,700 0,090 1,650 4 59,05 € 1071203
229 235 229 0,500 0,080 1,890 4 66,87 € 1071229
254 260 254 0,500 0,070 2,090 4 72,45 € 1071254
305 311 305 0,300 0,050 2,610 4 81,77 € 1071305
