Description

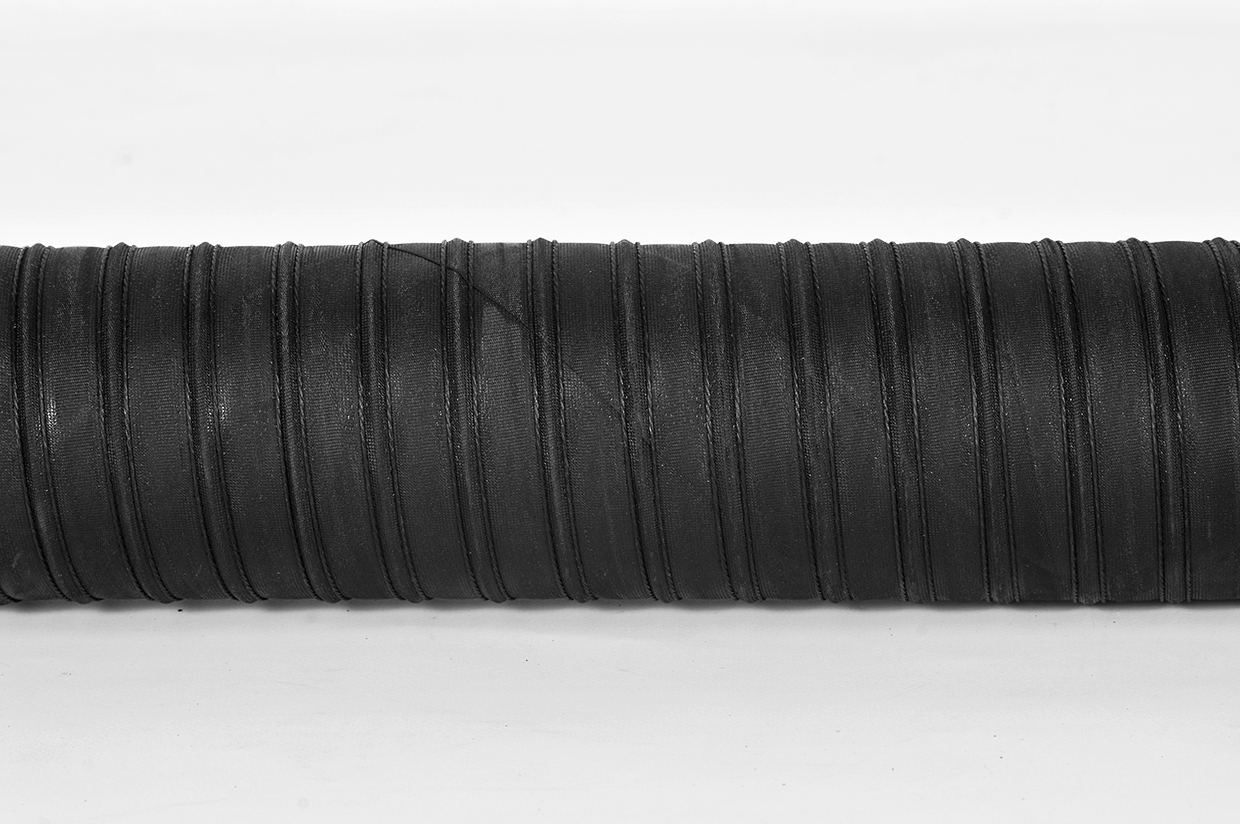

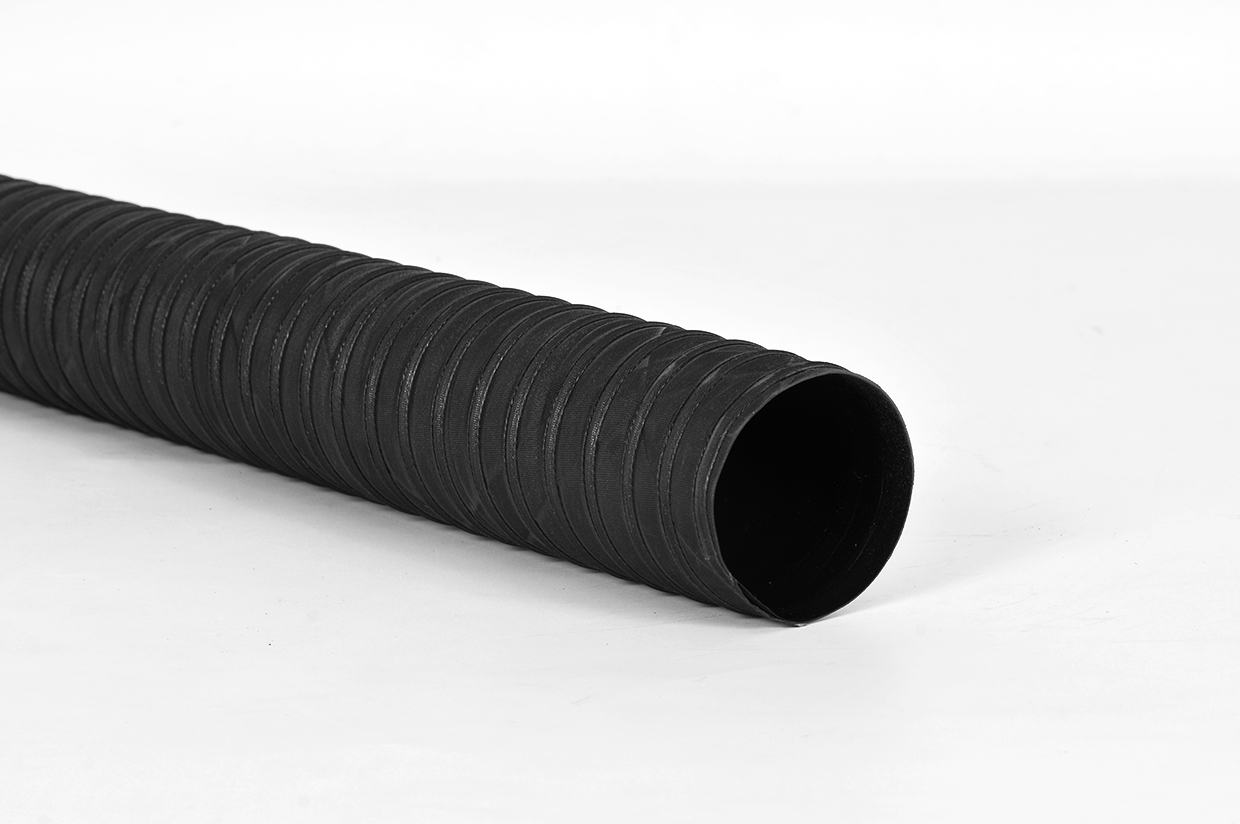

Vibration-resistant, two-ply, highly flexible, very lightweight, vulcanized hose made of neoprenecoated polyamide fabric. Hidden internal spring steel spiral and two external cords made of special yarn.
A finely crafted specialist product of high quality using high-grade raw materials.

Universally deployable in medium temperature range for hot and cold air, gases, vapors, dusts, powders, and fibers as well as in applications with vibrations and oscillations.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Two-ply
  • Smooth interior
  • Vibration-resistant
  • Good flow characteristics
  • Superior heat resistance
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii
Zweilagig Vibrationsfest

Standard length: 4 m. According to specifications.

Plant engineering, High-temperature suction, Vehicle construction, Rail vehicle construction, Filter for clean air intake, Filter engine, connecting hose, Transport of hot and cold air, Gas and steam extraction, Hot air, Engine fresh air intake, Neoprene hoses, Rail vehicle construction, engine technology

Color: black.
Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.

Properties

  • Two-ply
  • Smooth interior
  • Vibration-resistant
  • Good flow characteristics
  • Superior heat resistance
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii

Length

Standard length: 4 m. According to specifications.

Application Ranges

Plant engineering, High-temperature suction, Vehicle construction, Rail vehicle construction, Filter for clean air intake, Filter engine, connecting hose, Transport of hot and cold air, Gas and steam extraction, Hot air, Engine fresh air intake, Neoprene hoses, Rail vehicle construction, engine technology

Further Information

Color: black.
Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Outer-Ø
(mm)
Bending radius
(mm)
Pressure
(bar)
Vacuum
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
19 22 19 2,500 0,700 0,105 2,5 21,75 € 1041019
22 25 22 2,500 0,700

0,130

2,5 24,93 € 1041022
25 30 25 2,500 0,700 0,145 4 25,89 € 1041025
32 36 32 2,500 0,580 0,180 4 16,88 € 1041032
38 43 38 2,400 0,580 0,210 4 17,23 € 1041038
41 46 41 2,400 0,580 0,230 4 17,80 € 1041041
44 49 44 2,400 0,580 0,255 4 18,36 € 1041044
51 56 51 2,400 0,530 0,285 4 19,77 € 1041051
57 62 57 2,300 0,530 0,330 4 20,40 € 1041057
60 65 60 2,300 0,530 0,395 4 21,26 € 1041060
63 68 63 2,200 0,460 0,355 4 22,29 € 1041063
65 70 65 2,200 0,460 0,405 4 22,62 € 1041065
70 75 70 2,200 0,460 0,435 4 23,04 € 1041070
76 81 76 2,100 0,440 0,470 4 24,90 € 1041076
80 85 80 2,100 0,420 0,495 4 25,18 € 1041080
83 88 83 2,100 0,400 0,410 4 26,05 € 1041083
89 94 89 2,100 0,400 0,545 4 26,98 € 1041089
95 100 95 2,000 0,400 0,570 4 28,44 € 1041095
102 107 102 1,800 0,350 0,610 4 29,69 € 1041102
110 114 110 1,800 0,300 0,760 4 30,86 € 1041110
114 120 114 1,700 0,280 0,785 4 31,49 € 1041114
121 127 121 1,600 0,230 0,815 4 32,82 € 1041121
127 133 127 1,500 0,210 0,860 4 34,01 € 1041127
140 146 140 1,400 0,180 0,945 4 36,72 € 1041140
152 158 152 1,100 0,170 1,100 4 39,16 € 1041152
160 166 160 1,100 0,160 1,160 4 41,16 € 1041160
165 171 165 1,000 0,150 1,210 4 42,70 € 1041165
180 186 180 0,700 0,130 1,275 4

47,44 €

1041180
203 209 203 0,600 0,100 1,390 4 53,02 € 1041203
229 235 229 0,500 0,080 1,580 4 60,06 € 1041229
254 260 254 0,400 0,070 1,780 4 64,92 € 1041254
305 311 305 0,200 0,050 2,170 4 72,73 € 1041305
