3.12 PRIMAFLEX UNI M9

Temperature range -85 °C to 310 °C

Description

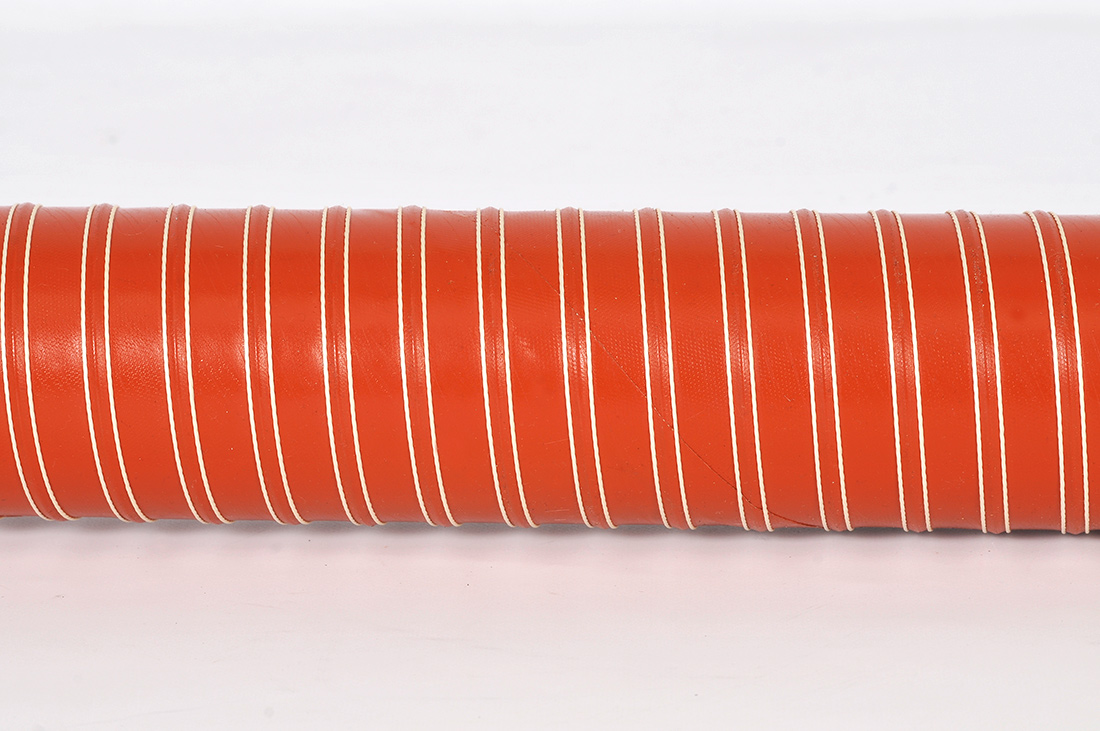

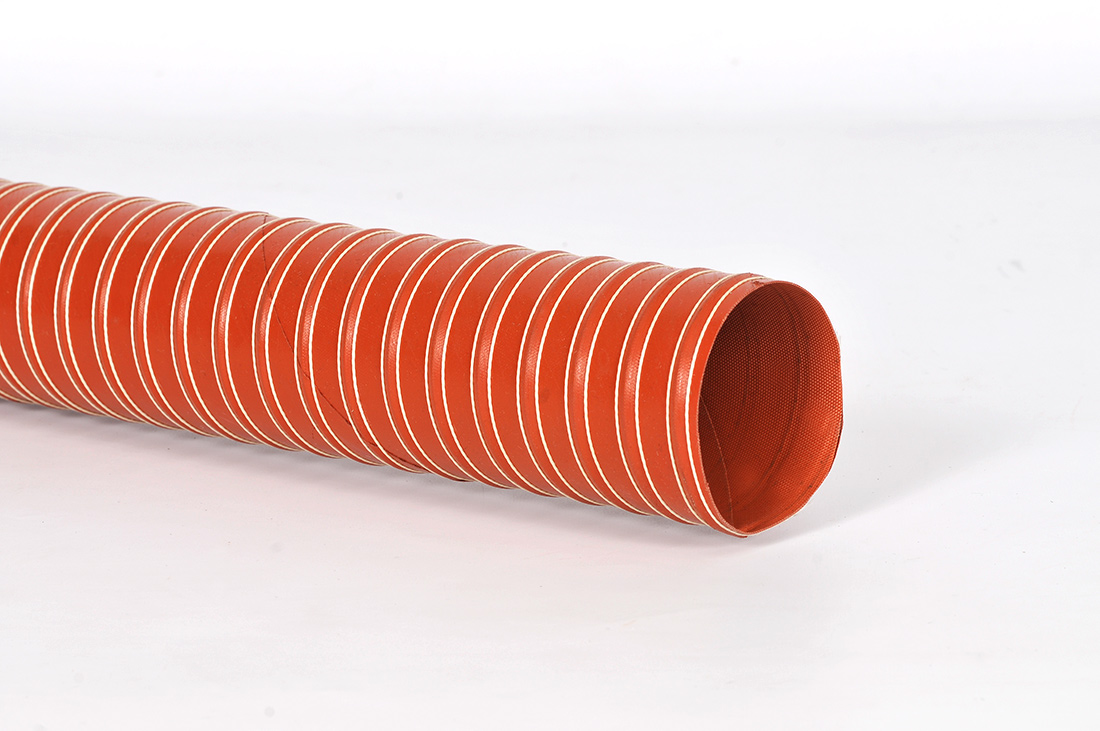

Two-ply, highly flexible, very lightweight, vulcanized hose made of silicone-coated glassfiber fabric. Hidden internal spring steel spiral and two external cords made of special yarn.
A finely crafted specialist product of high quality using high-grade raw materials.

Universally deployable in high temperature range for hot and cold air, gases, vapors, dusts, powders, and fibers.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Two-ply
  • Smooth interior
  • Good flow characteristics
  • Superior heat resistance
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii
Bestseller Zweilagig

Standard length: 4 m. According to specifications.

Aircraft construction (aerospace), Transport of hot and cold air, Granulate Dryers, Plant engineering, Suction technology, High-temperature suction, Aircraft construction, Brake cooling, Heat Suction, Aircraft air-conditioning, internal, Gas and steam extraction, Hot air, Superheated steam

Color: red.
Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.

Properties

  • Two-ply
  • Smooth interior
  • Good flow characteristics
  • Superior heat resistance
  • Superior cold resistance
  • Highly flexible, also in cold temperatures
  • Very lightweight
  • Non-kinking
  • Small bending radii

Length

Standard length: 4 m. According to specifications.

Application Ranges

Aircraft construction (aerospace), Transport of hot and cold air, Granulate Dryers, Plant engineering, Suction technology, High-temperature suction, Aircraft construction, Brake cooling, Heat Suction, Aircraft air-conditioning, internal, Gas and steam extraction, Hot air, Superheated steam

Further Information

Color: red.
Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)		 Outer-Ø
(mm)		 Bending radius
(mm)		 Pressure
(bar)		 Vacuum
(bar)		 Weight
(kg/m)		 Length
(m)		 Article-No.
19 22 19 2,500 0,585 0,130 2,5 1101019
22 25 22 2,500 0,585

0,150

 2,5 1101022
25 30 25 2,500 0,585 0,184 4 1101025
32 36 32 2,500 0,585 0,216 4 1101032
38 43 38 2,500 0,585 0,252 4 1101038
41 46 41 2,500 0,565 0,285 4 1101041
44 49 44 2,500 0,565 0,305 4 1101044
51 56 51 2,500 0,500 0,331 4 1101051
57 62 57 2,400 0,500 0,386 4 1101057
60 65 60 2,400 0,500 0,402 4 1101060
63 68 63 2,400 0,450 0,415 4 1101063
65 70 65 2,400 0,450 0,485 4 1101065
70 75 70 2,300 0,450 0,500 4 1101070
76 81 76 2,300 0,400 0,531 4 1101076
80 85 80 2,100 0,400 0,560 4 1101080
83 88 83 2,100 0,400 0,590 4 1101083
89 94 89 2,100 0,395 0,610 4 1101089
95 100 95 2,000 0,395 0,656 4 1101095
102 107 102 1,900 0,305 0,710 4 1101102
110 115 110 1,700 0,290 0,810 4 1101110
114 119 114 1,600 0,280 0,845 4 1101114
121 126 121 1,500 0,270 0,890 4 1101121
127 132 127 1,400 0,220 0,925 4 1101127
140 145 140 1,300 0,180 1,020 4 1101140
152 158 152 1,200 0,170 1,200 4 1101152
160 166 160 1,100 0,140 1,310 4 1101160
165 171 165 1,000 0,130 1,385 4 1101165
180 186 180 0,900 0,110 1,510 4 1101180
203 209 203 0,700 0,090 1,650 4 1101203
229 235 229 0,500 0,058 1,900 4 1101229
254 260 254 0,400 0,040 2,140 4 1101254
305 311 305 0,400 0,020 2,580 4 1101305
