Description

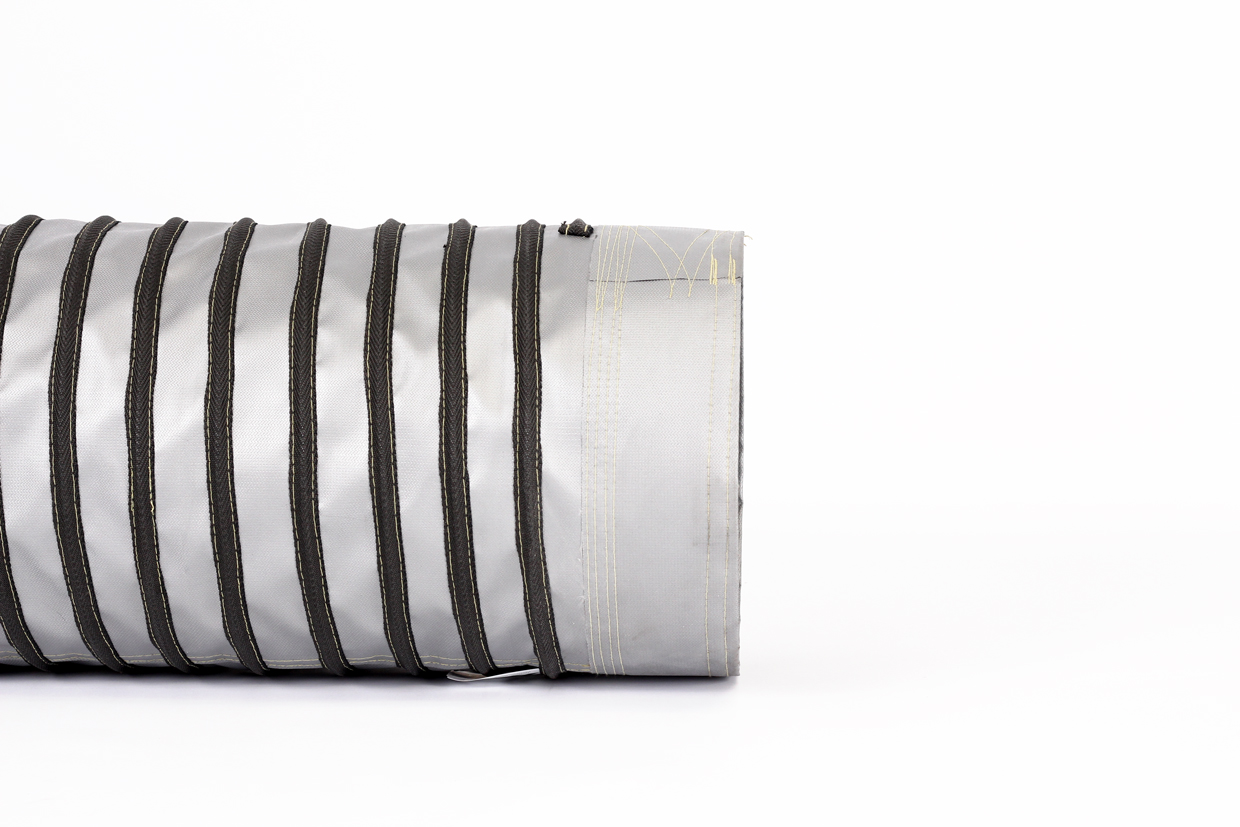

Reinforced, flexible high-temperature spiral hose made of a layer of heat-resistant technical textile fabric with a spring steel spiral covered by scuff protection. A finely crafted specialist sewn product of high quality using high-grade raw materials. Seamless and smooth inside surface thanks to special manufacturing process.

Highly suitable for conveying very hot and very cold air, cold and hot gases as well as vapors.stead of end sleeves.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Single-ply
  • Highly flexible
  • Smooth interior
  • Superior insulation
  • Durable
  • High tensile strength
  • Good axial compression capability
  • Good vacuum and overpressure properties
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves
Über- und Unterdruck besonders zugfest

Standard length: 7,6 m. According to specifications.

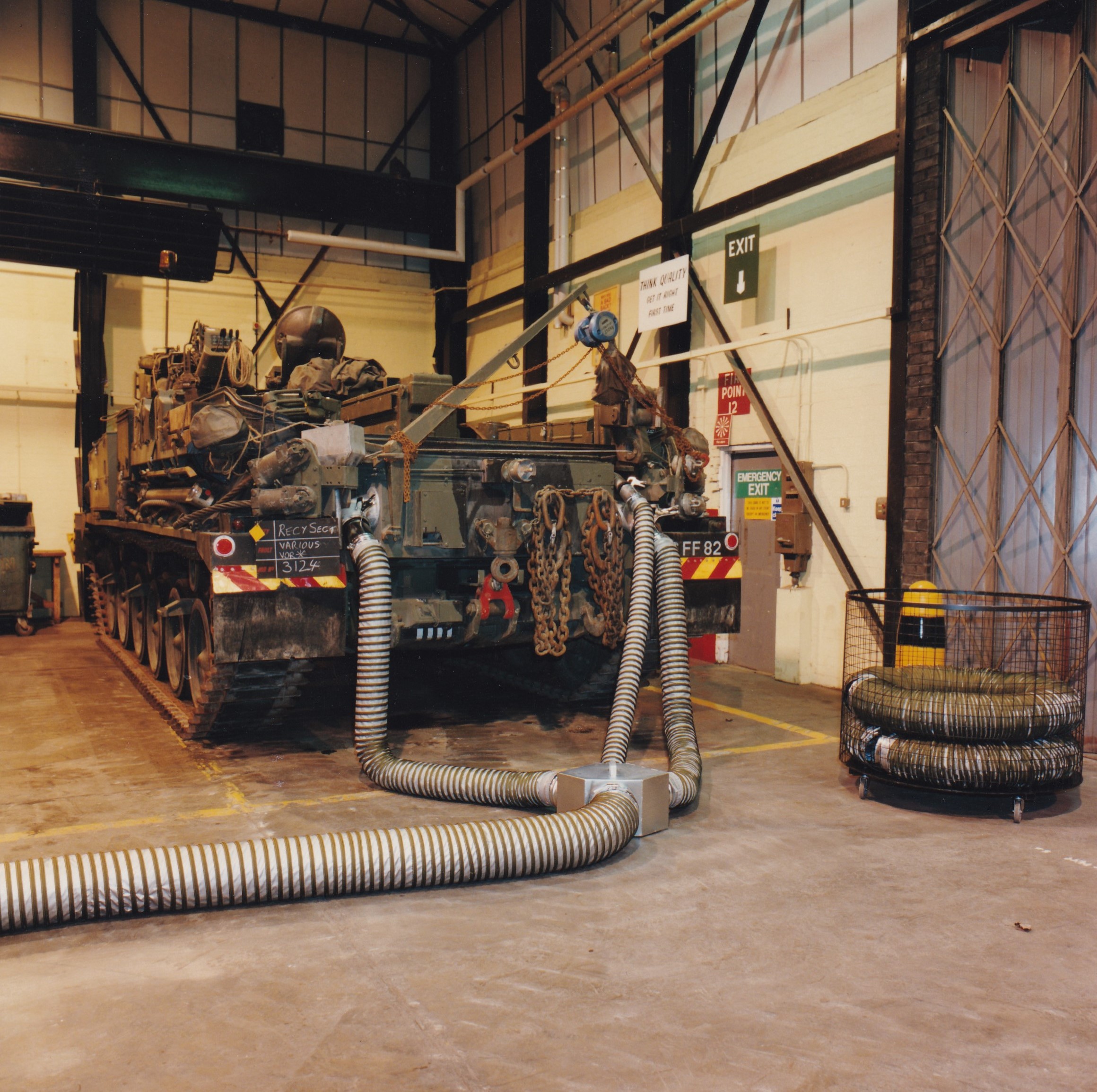

High-temperature suction, Vehicle construction, Transport of hot and cold air, Hot air, Exhaust suction

Color: silver with black scuff protection.
Extras: end rings instead of end sleeves.

Properties

  • Single-ply
  • Highly flexible
  • Smooth interior
  • Superior insulation
  • Durable
  • High tensile strength
  • Good axial compression capability
  • Good vacuum and overpressure properties
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves

Length

Standard length: 7,6 m. According to specifications.

Application Ranges

High-temperature suction, Vehicle construction, Transport of hot and cold air, Hot air, Exhaust suction

Further Information

Color: silver with black scuff protection.
Extras: end rings instead of end sleeves.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Spiral spacing (mm) Bending radius
(mm)
Pressure
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
102 50 102 0,050 0,650 7,6 84,27 € 4041102
127 50 127 0,050 0,810 7,6 104,77 € 4041127
152 50 152 0,050 0,970 7,6 118,03 € 4041152
160 50 160 0,050 1,000 7,6 138,52 € 4041160
180 50 180 0,050 1,170 7,6 148,21 € 4041180
203 50 203 0,050 1,280 7,6 157,47 € 4041203
254 50 254 0,045 1,600 7,6 196,13 € 4041254
305 50 305 0,045 1,950 7,6 234,78 € 4041305
315 50 315 0,045 2,000 7,6 246,41 € 4041315
356 50 356 0,040 2,270 7,6 278,01 € 4041356
407 50 407 0,040 2,600 7,6 317,30 € 4041407
425 50 425 0,040 2,760 7,6 351,19 € 4041425
457 50 457 0,035 2,920 7,6 358,14 € 4041457
508 50 508 0,035 3,240 7,6 419,65 € 4041508
525 50 525 0,035 3,400 7,6 433,68 € 4041525
560 50 560 0,035 3,600 7,6 435,20 € 4041560
600 50 600 0,035 3,900 7,6 495,54 € 4041600
