Description

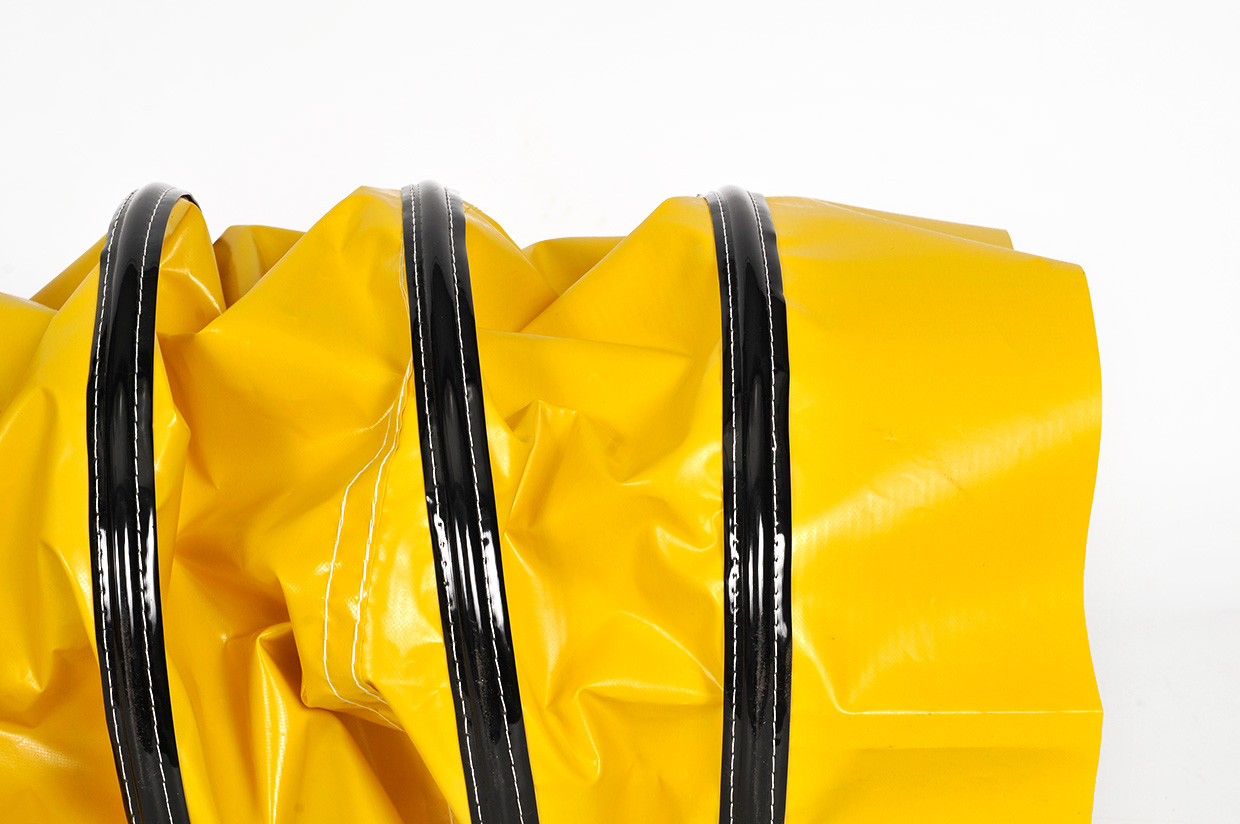

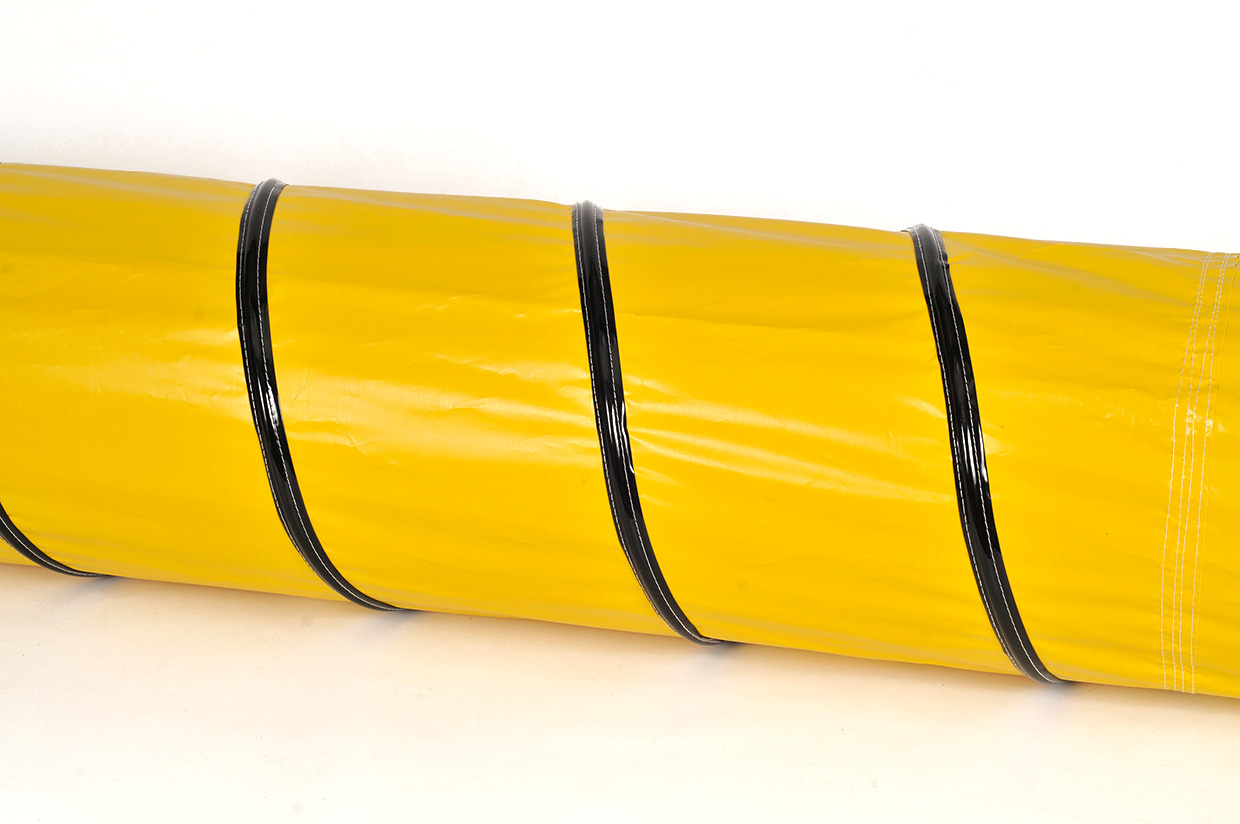

Very lightweight, highly flexible (fan) spiral hose for medium temperature range made of PVC-coated polyester fabric with an outer spring steel spiral with scuff protection. A finely crafted specialist sewn product of high quality using high-grade raw materials. Highly suitable for conveying cold or hot air on mobile heating fans and for tent air-conditioning.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Lightweight
  • Highly flexible
  • High tensile strength
  • Non-kinking
  • High compressibility
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves
Bestseller hochflexibel besonders zugfest

Standard length: 7.6 m. According to specifications.

building heating, building heaters, building drying, building drying, grain drying, blower hose, hot air, heating appliances hot air hose, heating fans, hay blower, fan hose, air conditioning and ventilation technology, mobile air conditioning units, drying technology, Hot air hose Heaters up to +100°C, hot air hoses, heaters, hot air hose for, wind turbines, shipyard, ventilation, tent heating, tent air conditioning

Also available upon request as spiralfree or insulated flat hose.
For increased vacuum conditions also tailor-made narrower spiral slopes can be produced.
Also welded types available.
Color: yellow-black.
Extras: end rings instea of end sleeves, hooks or eyelets for suspended installation.

Properties

  • Lightweight
  • Highly flexible
  • High tensile strength
  • Non-kinking
  • High compressibility
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves

Length

Standard length: 7.6 m. According to specifications.

Application Ranges

building heating, building heaters, building drying, building drying, grain drying, blower hose, hot air, heating appliances hot air hose, heating fans, hay blower, fan hose, air conditioning and ventilation technology, mobile air conditioning units, drying technology, Hot air hose Heaters up to +100°C, hot air hoses, heaters, hot air hose for, wind turbines, shipyard, ventilation, tent heating, tent air conditioning

Further Information

Also available upon request as spiralfree or insulated flat hose.
For increased vacuum conditions also tailor-made narrower spiral slopes can be produced.
Also welded types available.
Color: yellow-black.
Extras: end rings instea of end sleeves, hooks or eyelets for suspended installation.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Spiral spacing (mm) Bending radius
(mm)
Pressure
(bar)
Vacuum
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
102 50 50 0,300 0,035 0,250 7,6 18,33 € 4011100
127 75 63 0,300 0,035

0,313

7,6 15,78 € 4011127
152 100 76 0,300 0,035 0,400 7,6   10,54 € 4011152
203 125 102 0,275 0,035 0,530 7,6   10,93 € 4011203
229 150 114 0,250 0,021 0,610 7,6 15,66 € 4011229
254 175 127 0,225 0,021 0,660 7,6 17,72 € 4011254
305 225 153 0,175 0,021 0,800 7,6 12,39 € 4011305
356 225 178 0,150 0,021 0,930 7,6 18,06 € 4011356
407 225 204 0,125 0,021 1,060 7,6 20,59 € 4011407
425 225 213 0,120 0,021 1,130 7,6 17,13 € 4011425
457 225 229 0,110 0,021 1,190 7,6 18,40 € 4011457
508 225 254 0,100 0,021 1,320 7,6 25,61 € 4011508
525 225 263 0,100 0,018 1,450 7,6 22,26 € 4011525
600 225 300 0,085 0,014 1,600 7,6 30,17 € 4011600
700 225 350 0,070 0,010 1,870 7,6 36,55 € 4011700
800 225 400 0,060 0,010 2,100 7,6 41,72 € 4011800
900 225 450 0,050 0,010 2,400 7,6 46,88 € 4011900
1000 225 500 0,040 0,010 2,670 7,6 52,04 € 40111000
