4.03 PRIMAFLEX SPIRA PP80

Temperature range -20 °C to 100 °C

Description

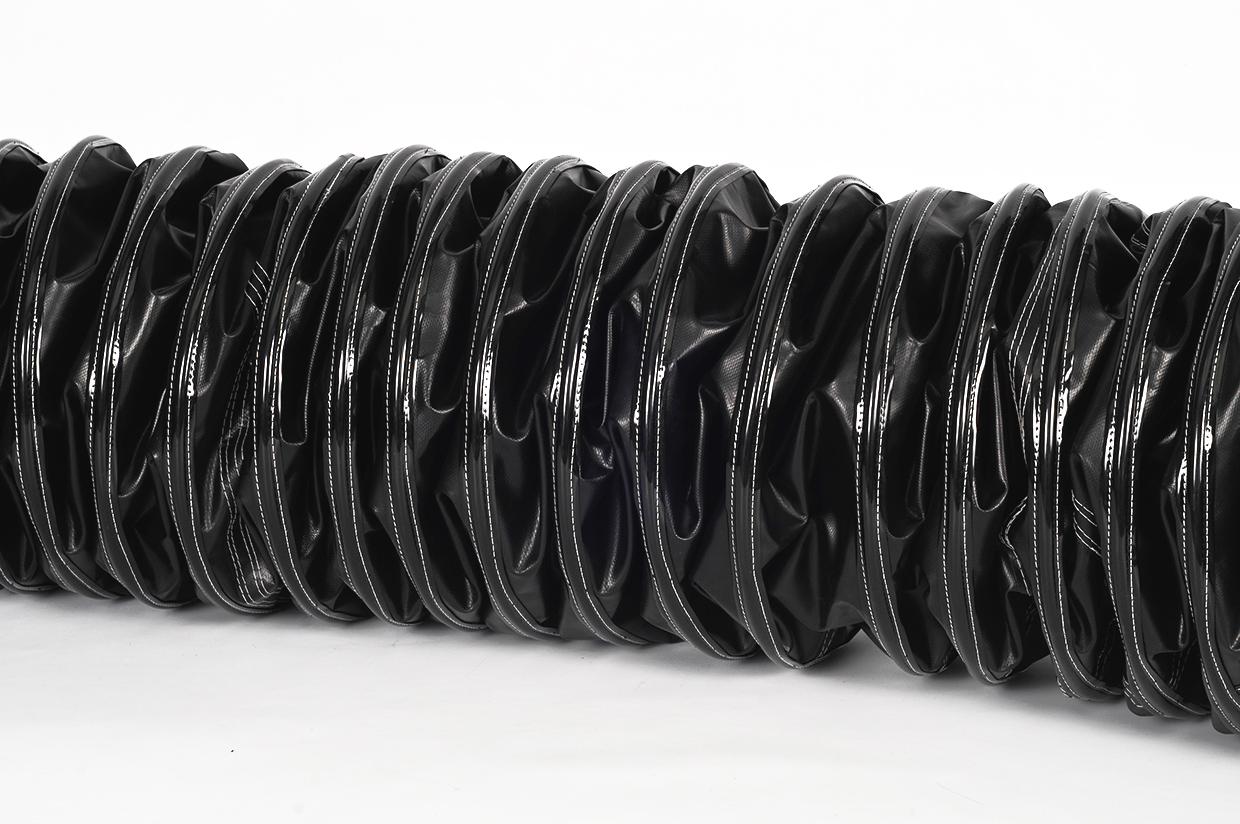

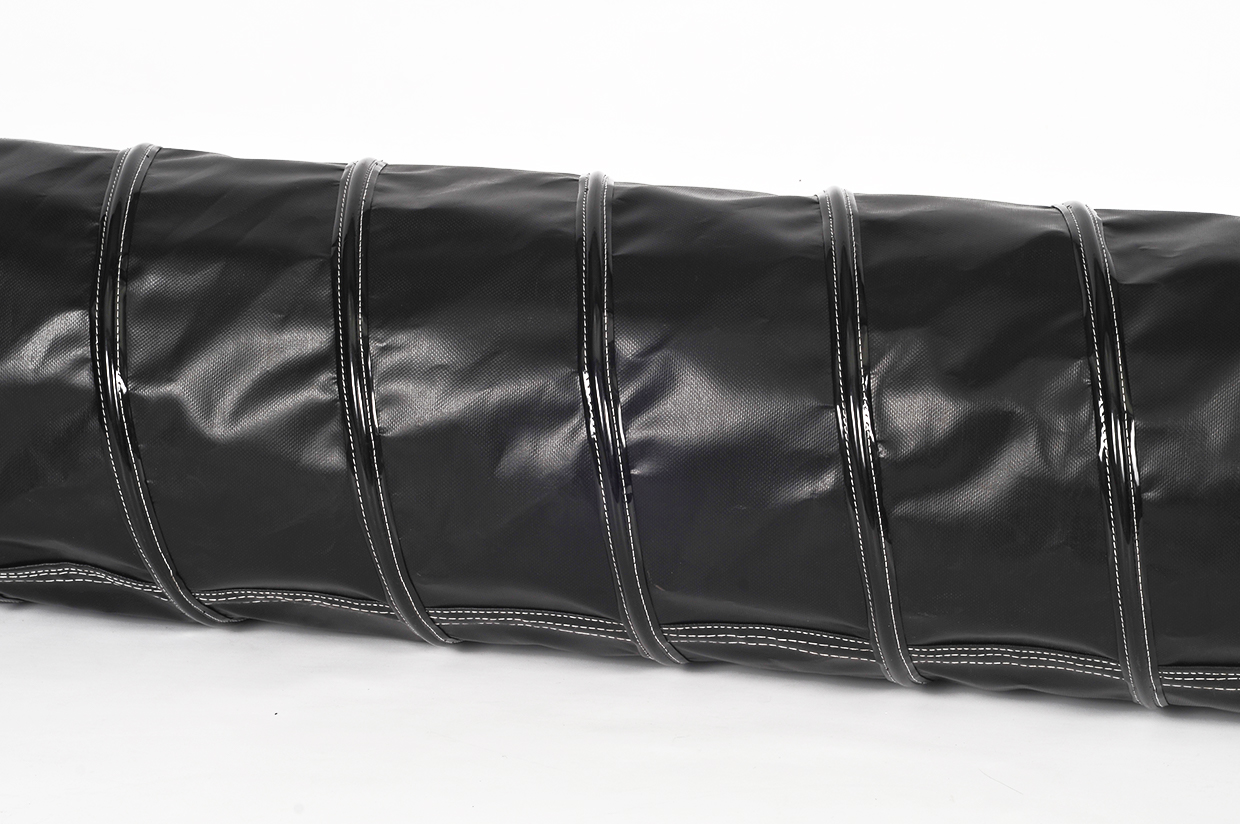

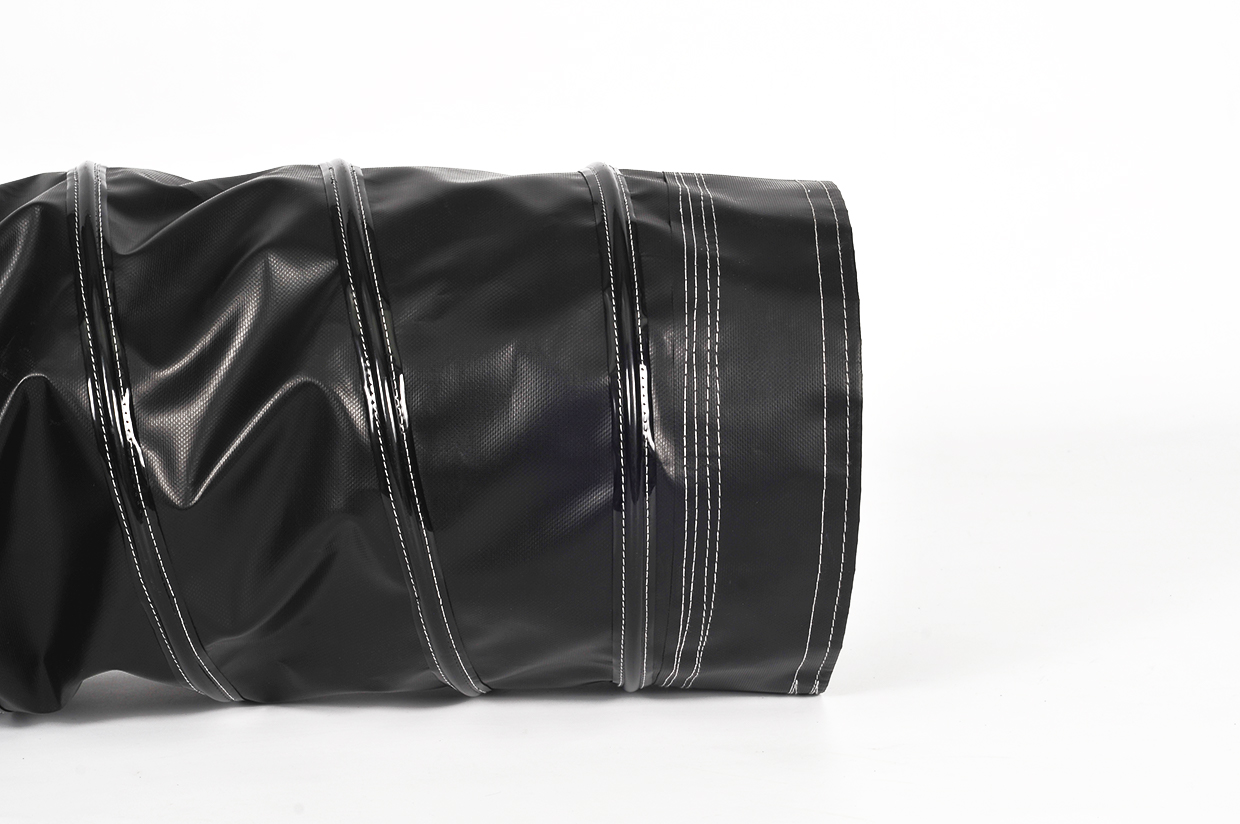

Anti-static, flexible ventilator hose spiral hose. Can be used between -20°C to 100°C. Made of anti-static PVC-coated polyamide fabric and provided on the outside with a spring steel spiral inserted with abrasion protection. Quality product made of high-quality raw material and sewed with craftsmanship using special know-how. Ideally suited for cunducting gaseous media in areas where static charging is to be prevented. Ideal for air supply and exhaust ventilation for buildings, ships, etc.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Anti-static
  • Lightweight
  • Robust
  • Highly flexible
  • High tensile strength
  • Non-kinking
  • Compressible
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves
besonders zugfest

Standard length: 7.6 m. According to specifications.

Ventilation, Smoke suction, Antistatic hoses, Sewer system air supply and ventilation, Air-conditioning and ventilation technology, Fan hose, Ventilation technology, Mobile suction systems, PVC hoses, Weld fume suction, Tank ventilation, Tank degassing, Shipyards

Color: black.
Extras: end rings instead of end sleeves, Velcro closure for continuous installation.

Properties

  • Anti-static
  • Lightweight
  • Robust
  • Highly flexible
  • High tensile strength
  • Non-kinking
  • Compressible
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves

Length

Standard length: 7.6 m. According to specifications.

Application Ranges

Ventilation, Smoke suction, Antistatic hoses, Sewer system air supply and ventilation, Air-conditioning and ventilation technology, Fan hose, Ventilation technology, Mobile suction systems, PVC hoses, Weld fume suction, Tank ventilation, Tank degassing, Shipyards

Further Information

Color: black.
Extras: end rings instead of end sleeves, Velcro closure for continuous installation.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)		 Spiral spacing
(mm)		 Bending radius
(mm)		 Pressure
(bar)		 Vacuum
(bar)		 Weight
(kg/m)		 Length
(m)		 Article-No.
102 50 68 0,600 0,050 0,450 7,6 4022102
127 75 87 0,600 0,050

0,560

 7,6 4022127
152 75 106 0,600 0,050 0,670 7,6 4022152
203 150 142 0,550 0,050 0,900 7,6 4022203
254 150 178 0,450 0,030 1,180 7,6 4022254
305 150 214 0,350 0,030 1,400 7,6 4022305
356 150 249 0,300 0,030 1,600 7,6 4022356
407 150 285 0,250 0,030 1,800 7,6 4022407
457 150 320 0,220 0,030 2,100 7,6 4022457
508 150 350 0,200 0,025 2,360 7,6 4022508
525 150 368 0,200 0,025 2,470 7,6 4022525
600 150 420 0,170 0,020 2,700 7,6 4022600
