Description

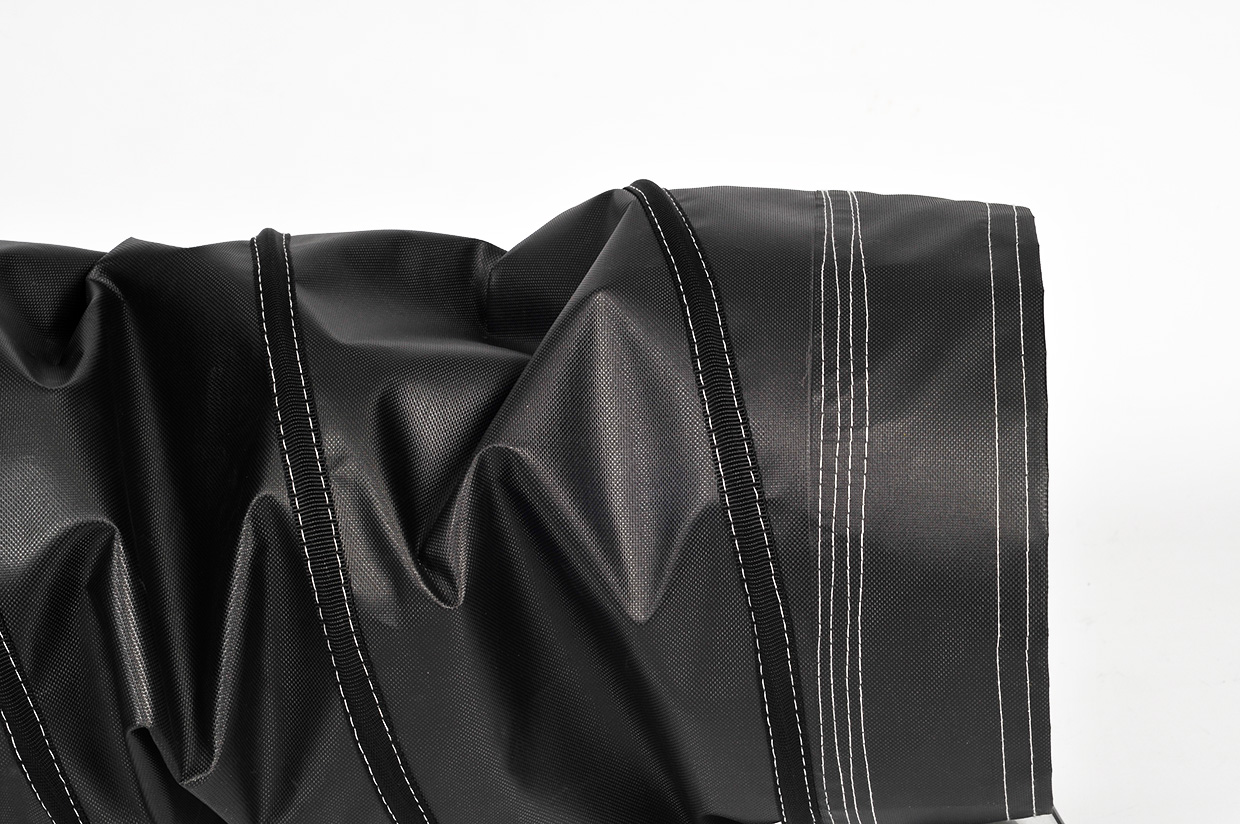

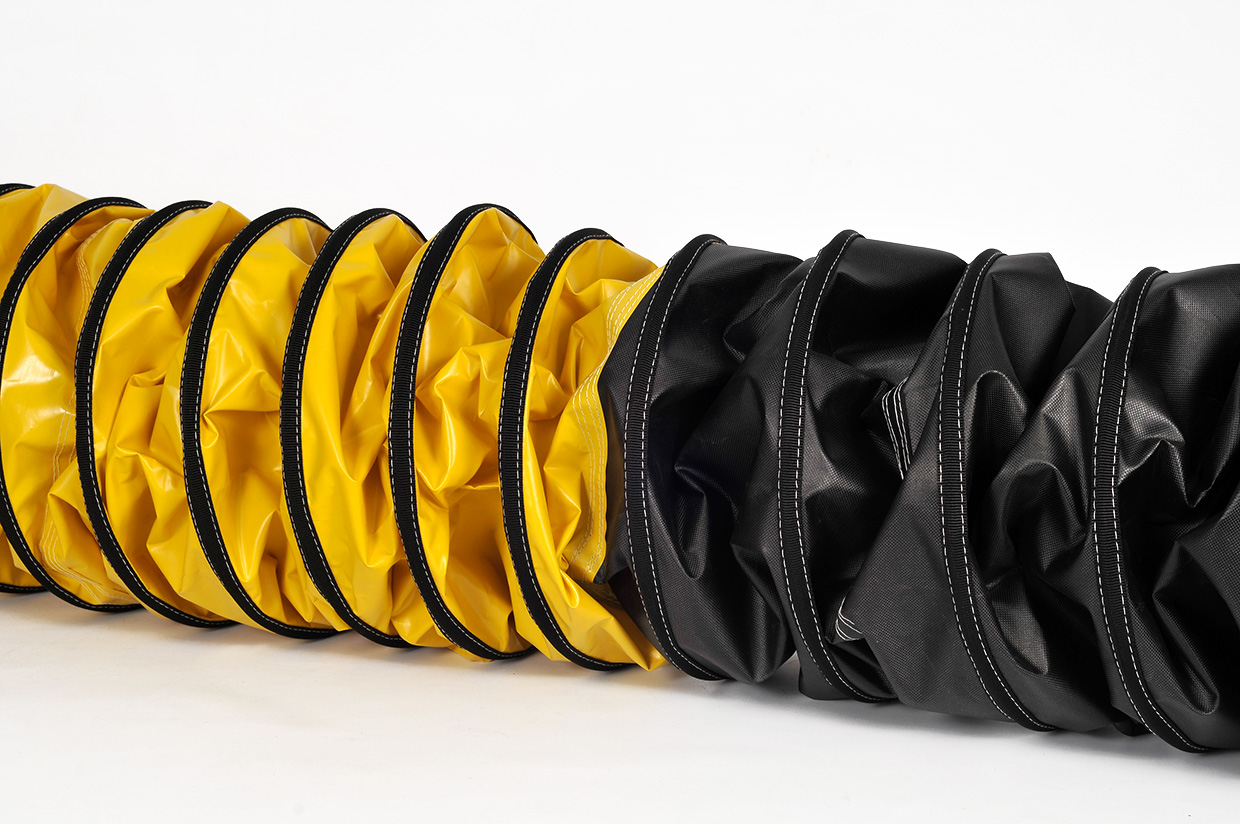

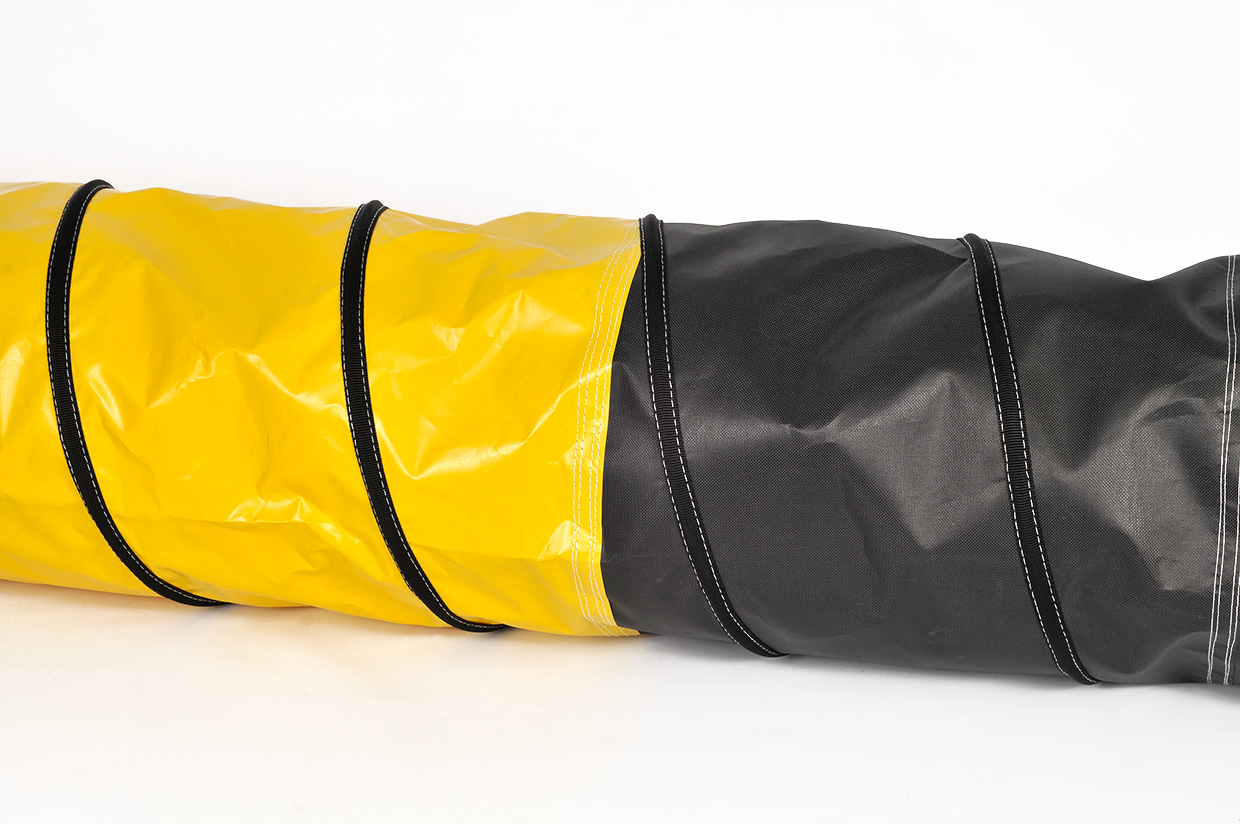

Combined very lightweight, highly flexible (fan) spiral hose for medium temperature range made of PVC-coated polyester fabric with an outer spring steel spiral with scuff protection. The first part consists of a neoprene-coated fabric for higher inlet temperatures at the device connection. A finely crafted specialist sewn product of high quality using high-grade raw materials. Highly suitable for conveying cold or hot air on heavy-duty mobile heating fans.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Enhanced temperature resistance (first part)
  • Lightweight
  • Highly flexible
  • Non-kinking
  • High tensile strength
  • High compressibility
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves
besonders zugfest temperaturbeständig

Standard length: 7.6 m. According to specifications.

Construction site heating, Tent heating, Drying of buildings, Drying buildings, Drying grain, Warehouse heating, Hot air, Heating fans, Hot air hoses, Winter construction site heating, Tent air-conditioning

olor: yellow-black (green).
Extras: end rings instead of end sleeves, hooks or eyelets for suspended installation.

Properties

  • Enhanced temperature resistance (first part)
  • Lightweight
  • Highly flexible
  • Non-kinking
  • High tensile strength
  • High compressibility
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves

Length

Standard length: 7.6 m. According to specifications.

Application Ranges

Construction site heating, Tent heating, Drying of buildings, Drying buildings, Drying grain, Warehouse heating, Hot air, Heating fans, Hot air hoses, Winter construction site heating, Tent air-conditioning

Further Information

olor: yellow-black (green).
Extras: end rings instead of end sleeves, hooks or eyelets for suspended installation.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Spiral spacing (mm) Bending radius
(mm)
Pressure
(bar)
Vacuum
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
102 50 51 0,300 0,035 0,250 7,6 15,87 € 4075102
127 75 63 0,300 0,035

0,313

7,6 13,21 € 4075127
152 100 76 0,300 0,035 0,400 7,6 15,41 € 4075152
203 125 102 0,275 0,035 0,530 7,6 16,66 € 4075203
254 175 127 0,225 0,021 0,660 7,6 17,88 € 4075254
305 225 153 0,175 0,021 0,800 7,6 15,98 € 4075305
356 225 178 0,150 0,021 0,930 7,6 19,89 € 4075356
407 225 204 0,125 0,021 1,060 7,6 22,72 € 4075407
425 225 213 0,120 0,021 1,130 7,6 23,70 € 4075425
457 225 229 0,110 0,021 1,190 7,6 25,44 € 4075457
508 225 254 0,100 0,021 1,320 7,6 33,35 € 4075508
525 225 263 0,100 0,018 1,450 7,6 34,44 € 4075525
600 225 300 0,085 0,014 1,600 7,6 39,24 € 4075600
