Description

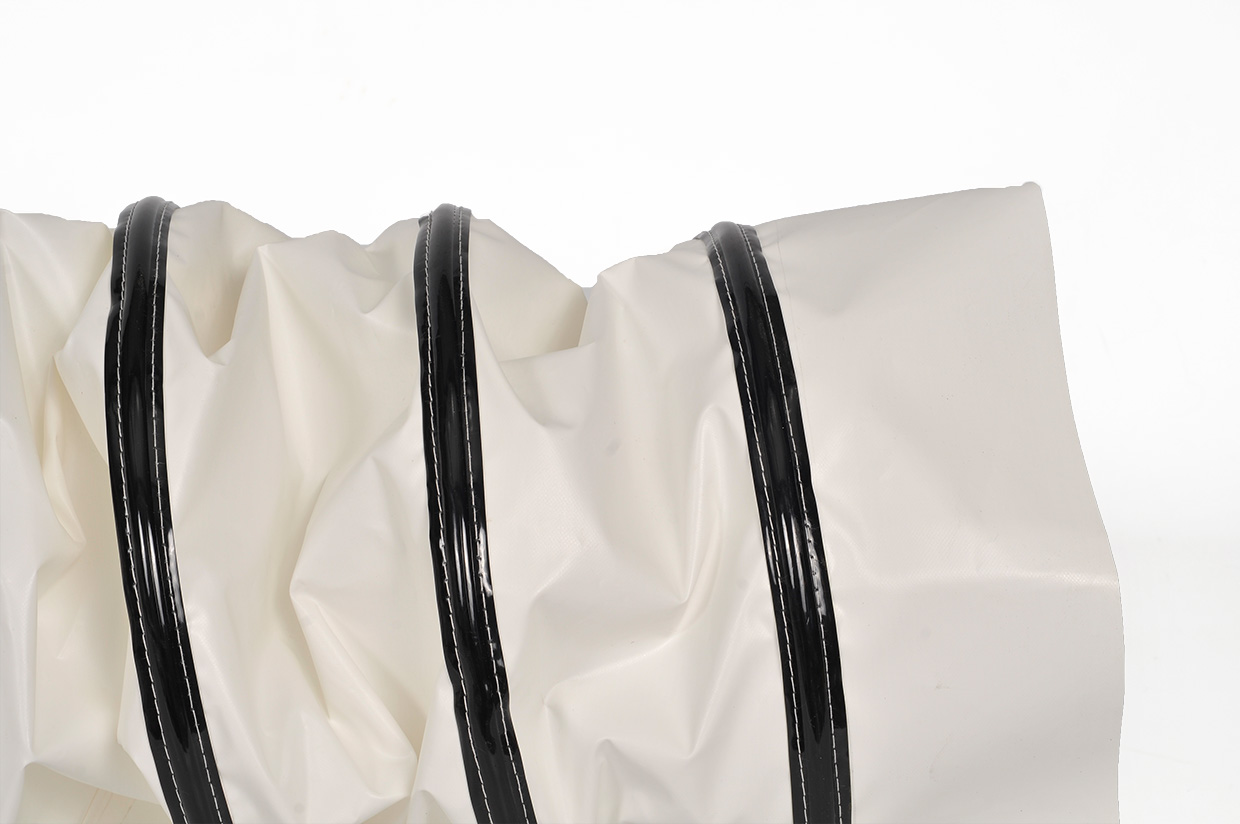

Modified very lightweight, highly flexible (fan/A/C) spiral hose for medium temperature range made of PVC-coated polyester fabric with an outer spring steel spiral with scuff protection. A finely crafted specialist sewn product of high quality using high-grade raw materials. Highly suitable for conveying cold or hot air on mobile heating fans and air-conditioners and for tent air-conditioning. Special color pattern for civilian relief organizations, army, and emergency services.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • Lightweight
  • Highly flexible
  • High tensile strength
  • Non-kinking
  • High compressibility
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves
Bestseller besonders zugfest

Standard length: 7.6 m. According to specifications.

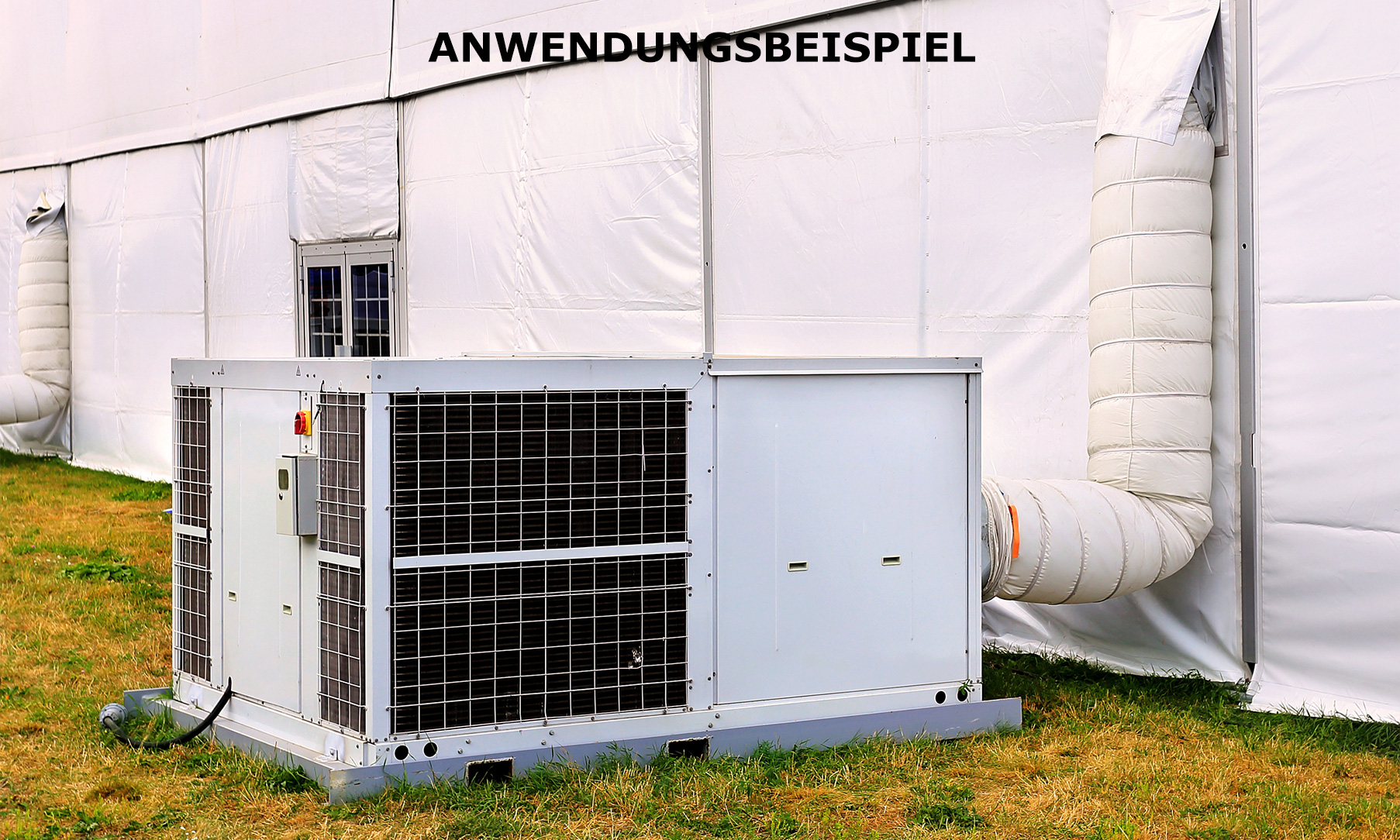

Tent air-conditioning, Tent heating, PVC hoses, Air-conditioning and ventilation technology, Warehouse heating, Construction site heating, Hot air hoses

Also available upon request as spiral-free insulated flat hose.
For increased vacuum conditions also tailor-made narrower spiral slopes can be produced.
Also welded types available.

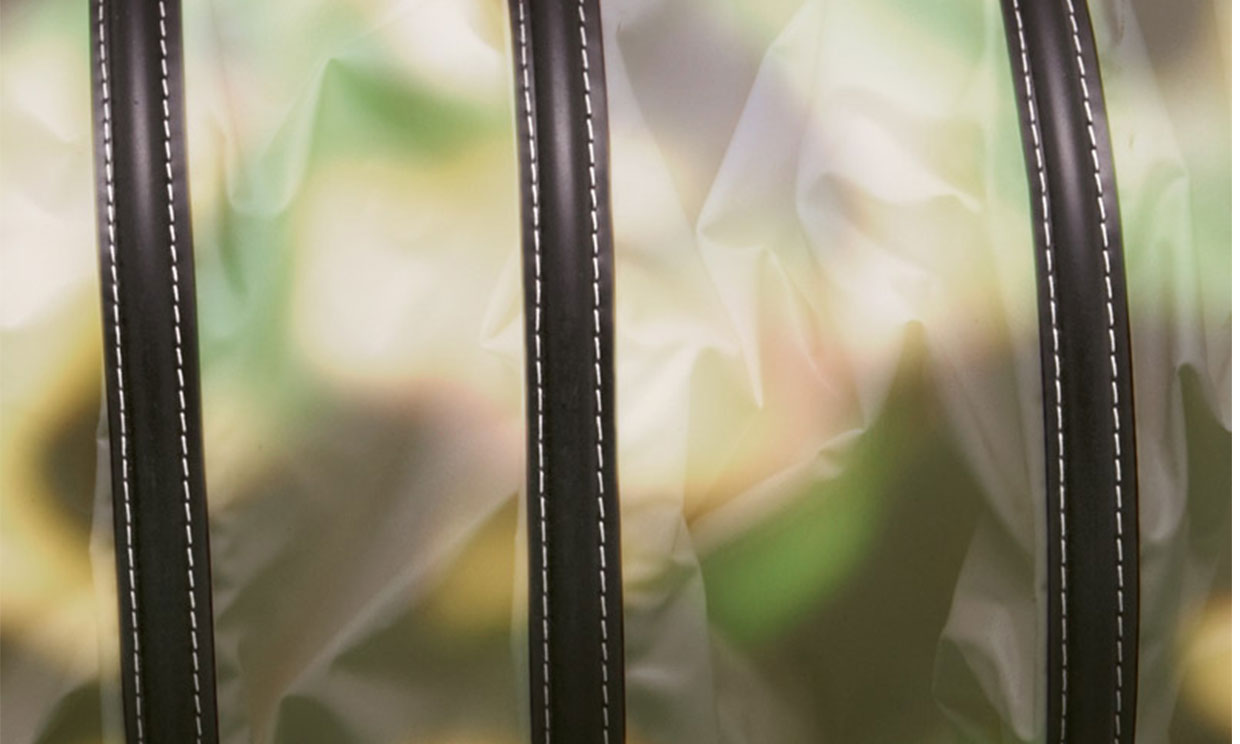

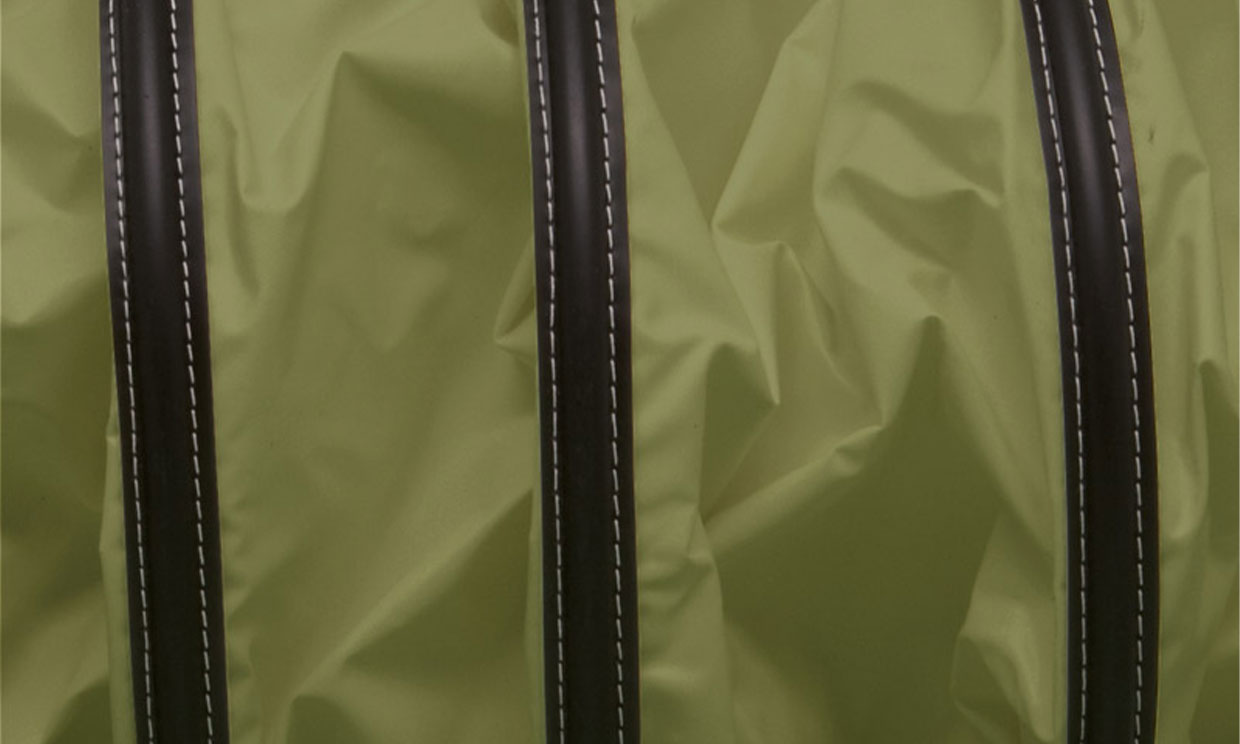

Colors: white-black, camouflage, olive-green (NATO green), red.

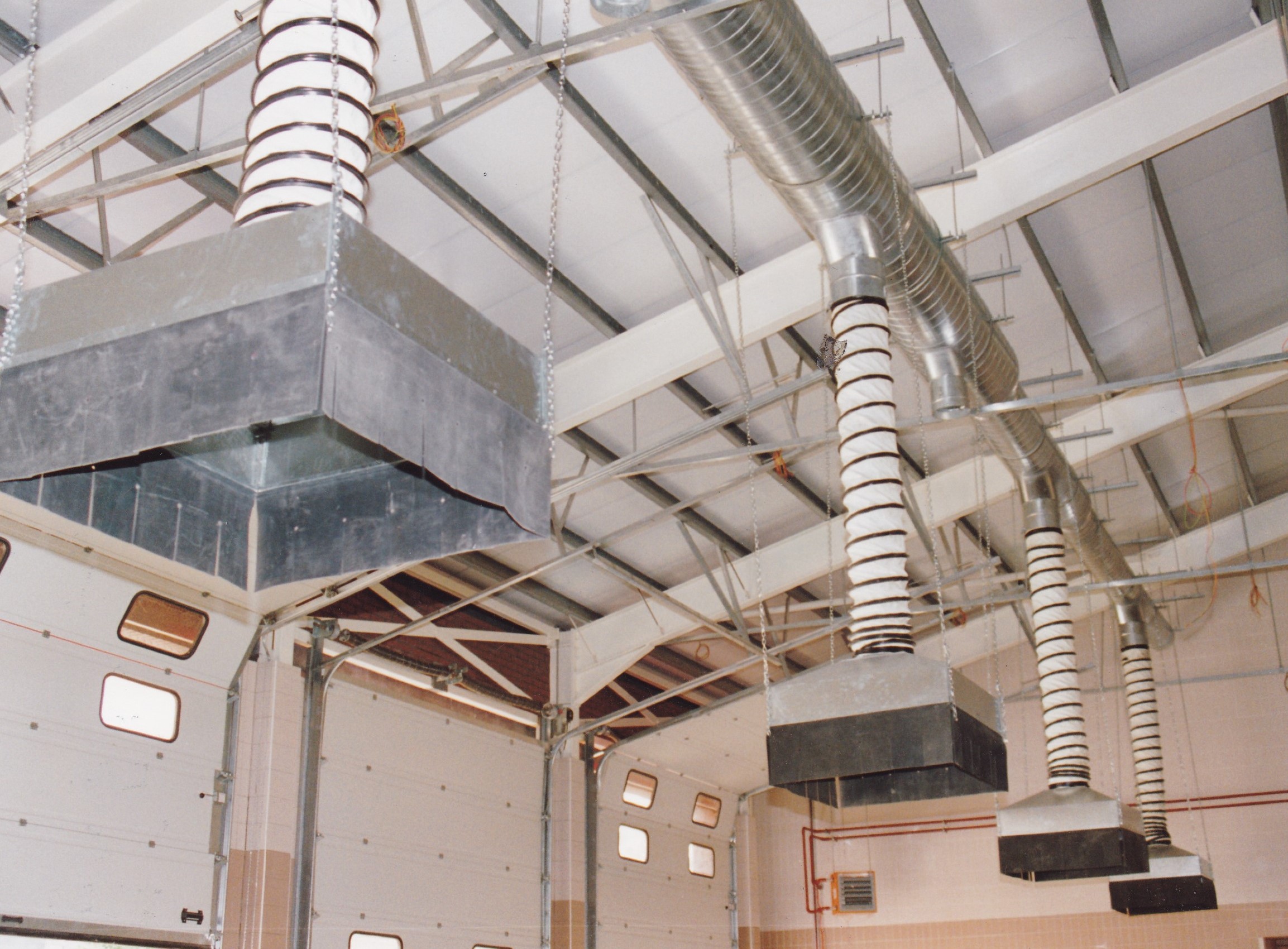

Extras: end rings instead of end sleeves, hooks or eyelets for suspended installation.

Properties

  • Lightweight
  • Highly flexible
  • High tensile strength
  • Non-kinking
  • High compressibility
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves

Length

Standard length: 7.6 m. According to specifications.

Application Ranges

Tent air-conditioning, Tent heating, PVC hoses, Air-conditioning and ventilation technology, Warehouse heating, Construction site heating, Hot air hoses

Further Information

Also available upon request as spiral-free insulated flat hose.
For increased vacuum conditions also tailor-made narrower spiral slopes can be produced.
Also welded types available.
Colors: white-black, camouflage, olive-green (NATO green), red.
Extras: end rings instead of end sleeves, hooks or eyelets for suspended installation.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Spiral spacing (mm) Bending radius
(mm)
Pressure
(bar)
Vacuum
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
102 50 50 0,300 0,035 0,25 7,6 14,58 € Specification after color choice
127 75 63 0,300 0,035 0,3125 7,6 11,60 €
152 150 76 0,300 0,035 0,4 7,6 13,77 €
203 150 102 0,275 0,035 0,53 7,6 14,63 €
254 150 127 0,225 0,021 0,66 7,6 18,63  €
305 225 153 0,175 0,021 0,8 7,6 17,46 €
356 225 178 0,150 0,021 0,93 7,6 20,24 €
407 225 204 0,125 0,021 1,06 7,6 23,13 €
425 225 213 0,120 0,021 1,13 7,6 24,13 €
457 225 229 0,110 0,021 1,19 7,6 25,91 €
508 225 254 0,100 0,021 1,32 7,6 28,75 €
525 225 263 0,100 0,018 1,45 7,6 29,69 €
600 225 300 0,085 0,014 1,6 7,6 33,86 €
