Description

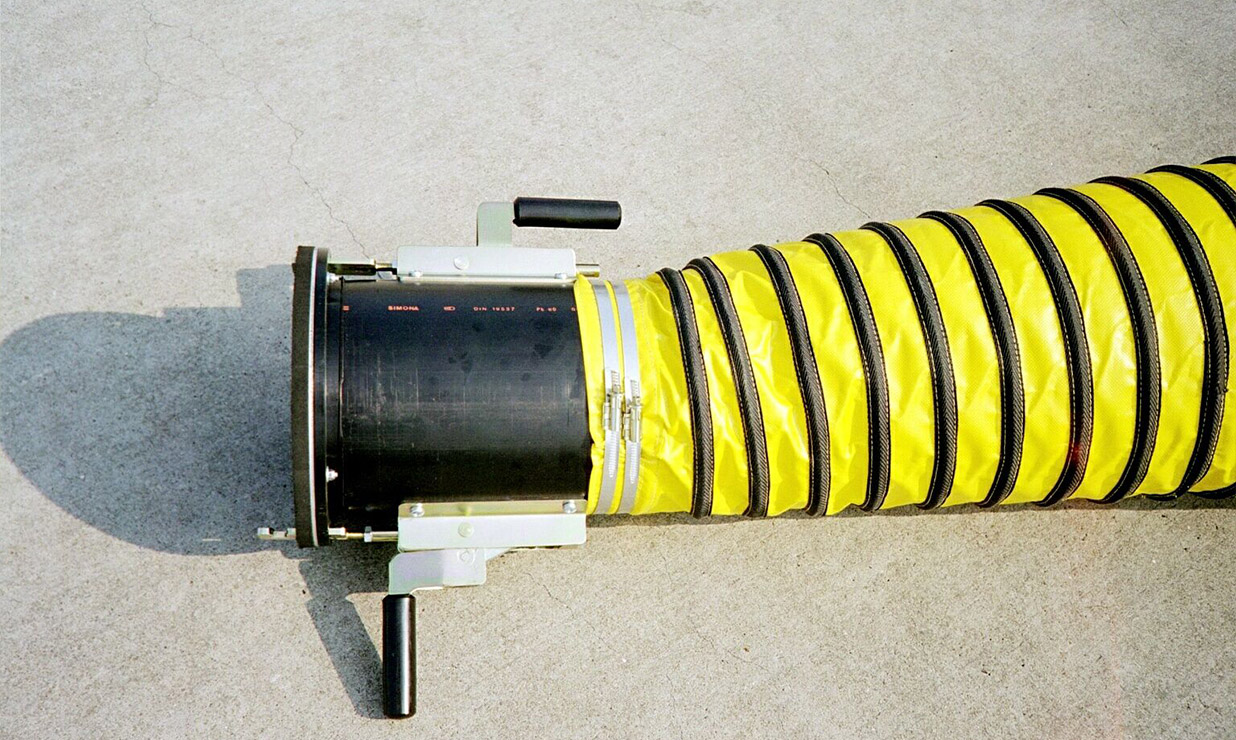

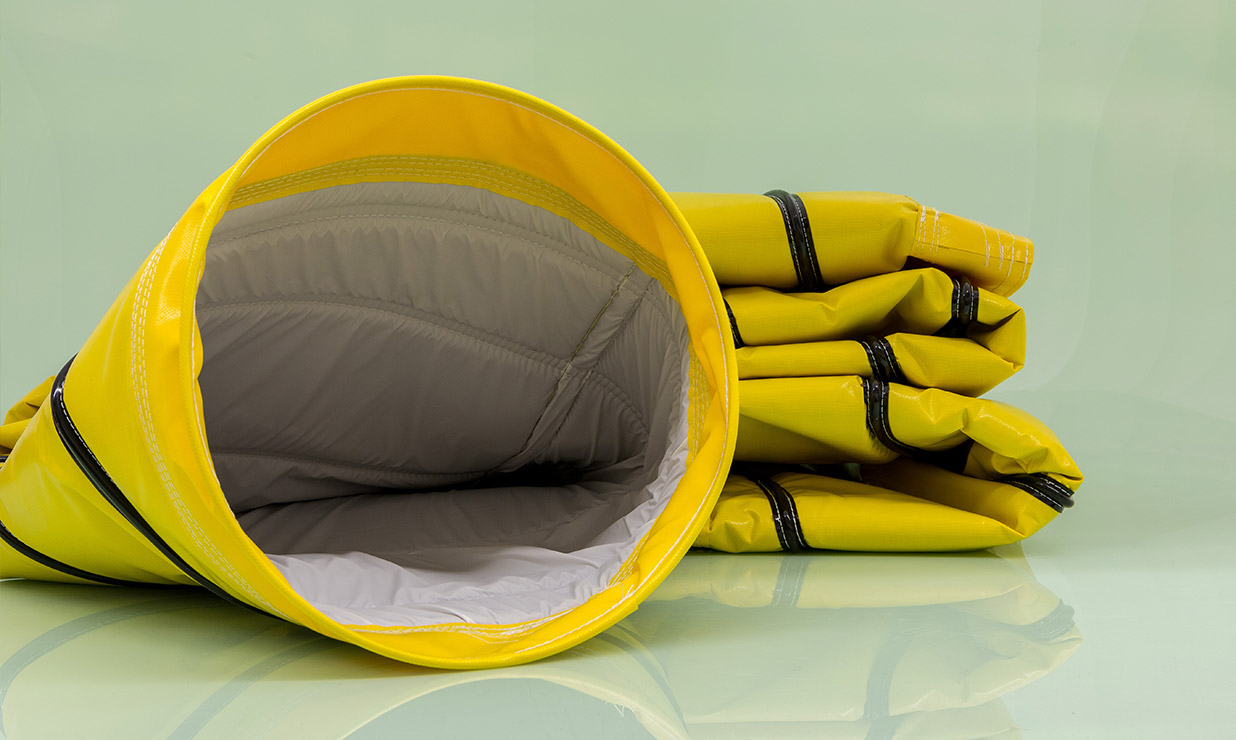

Insulated flexible (A/C) spiral hose for medium temperature range made of two-ply PVCcoated polyester fabric with inner insulation and spring steel spiral covered by scuff protection. A finely crafted specialist sewn product of high quality using high-grade raw materials. Highly suitable for conveying air-conditioned air on mobile or stationary air-conditioners and for tent air-conditioning. The insulation ensures a low level of temperature loss.

  • Properties
  • Application Ranges
  • Further Information
  • Insulated
  • Lightweight
  • Flexible
  • High tensile strength
  • Non-kinking
  • Compressible
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves
besonders zugfest

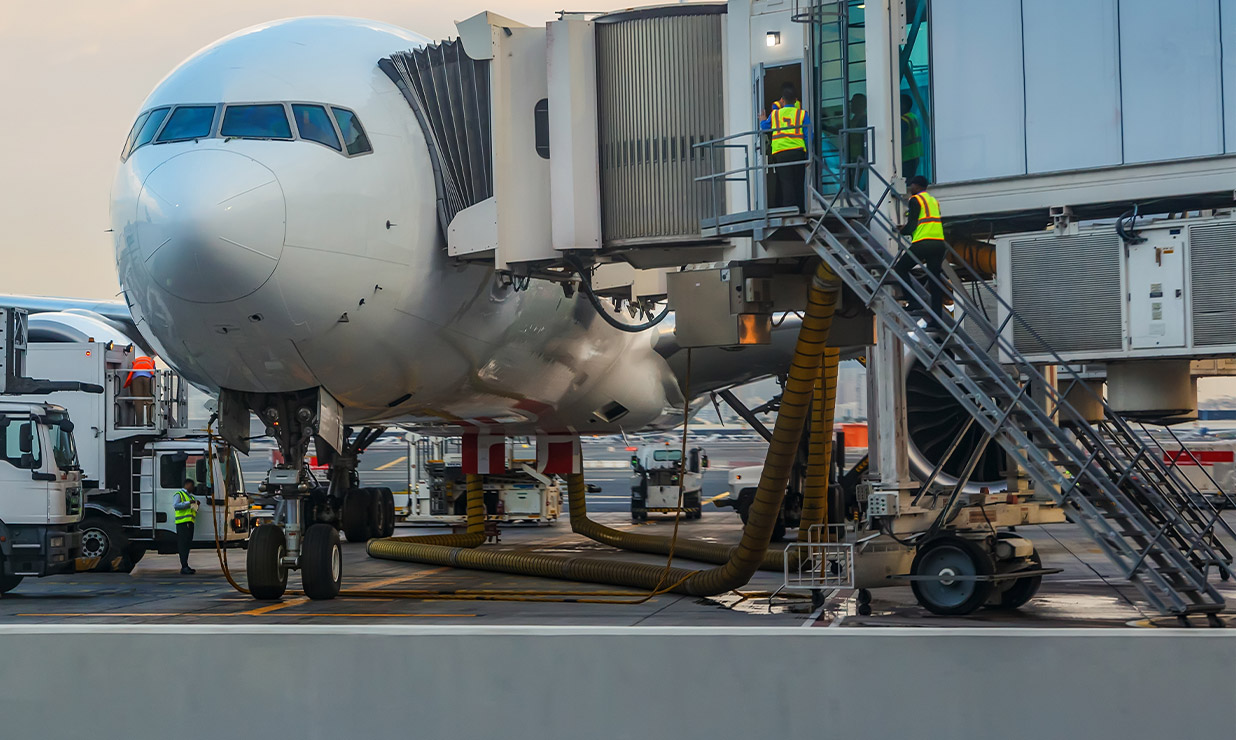

Hot air hoses, Air-conditioning and ventilation technology, , Aircraft air-conditioning, external, Airport, PCA system

Color: yellow-black.
Extras: end rings instead of end sleeves, Velcro closure for continuous installation.

Properties

  • Insulated
  • Lightweight
  • Flexible
  • High tensile strength
  • Non-kinking
  • Compressible
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves

Application Ranges

Hot air hoses, Air-conditioning and ventilation technology, , Aircraft air-conditioning, external, Airport, PCA system

Further Information

Color: yellow-black.
Extras: end rings instead of end sleeves, Velcro closure for continuous installation.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Spiral spacing
(mm)
Weight
(kg/m)

Length

(m)

Price
(€/m)
Article-No.
203 150 1,060 according to customer requirements 63,01 € Article-no. is assigned after specification
305 150 1,600 according to customer requirements 93,82 €
356 150 1,870 according to customer requirements 109,27 €
407 150 2,140 according to customer requirements 124,70 €
457 150 2,400 according to customer requirements 139,23 €
508 150 1,670 according to customer requirements 155,28 €
