Description

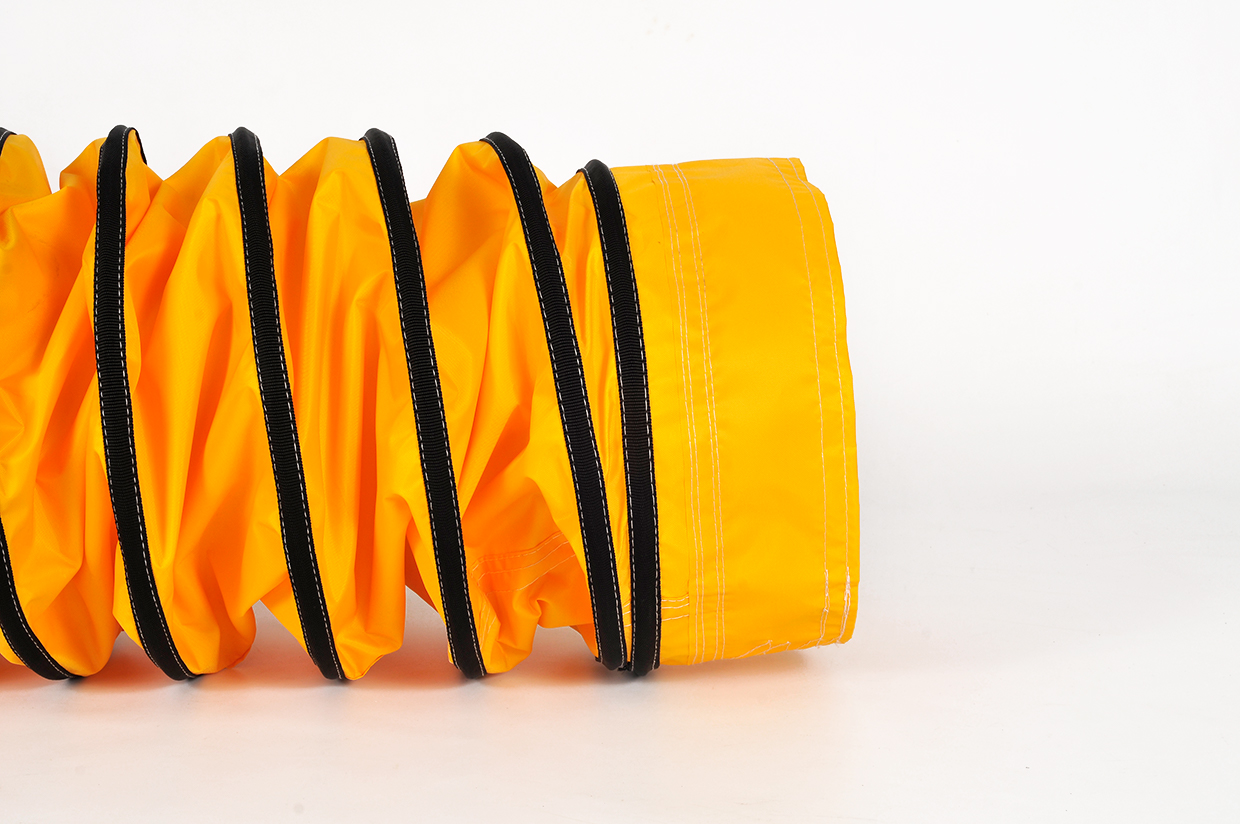

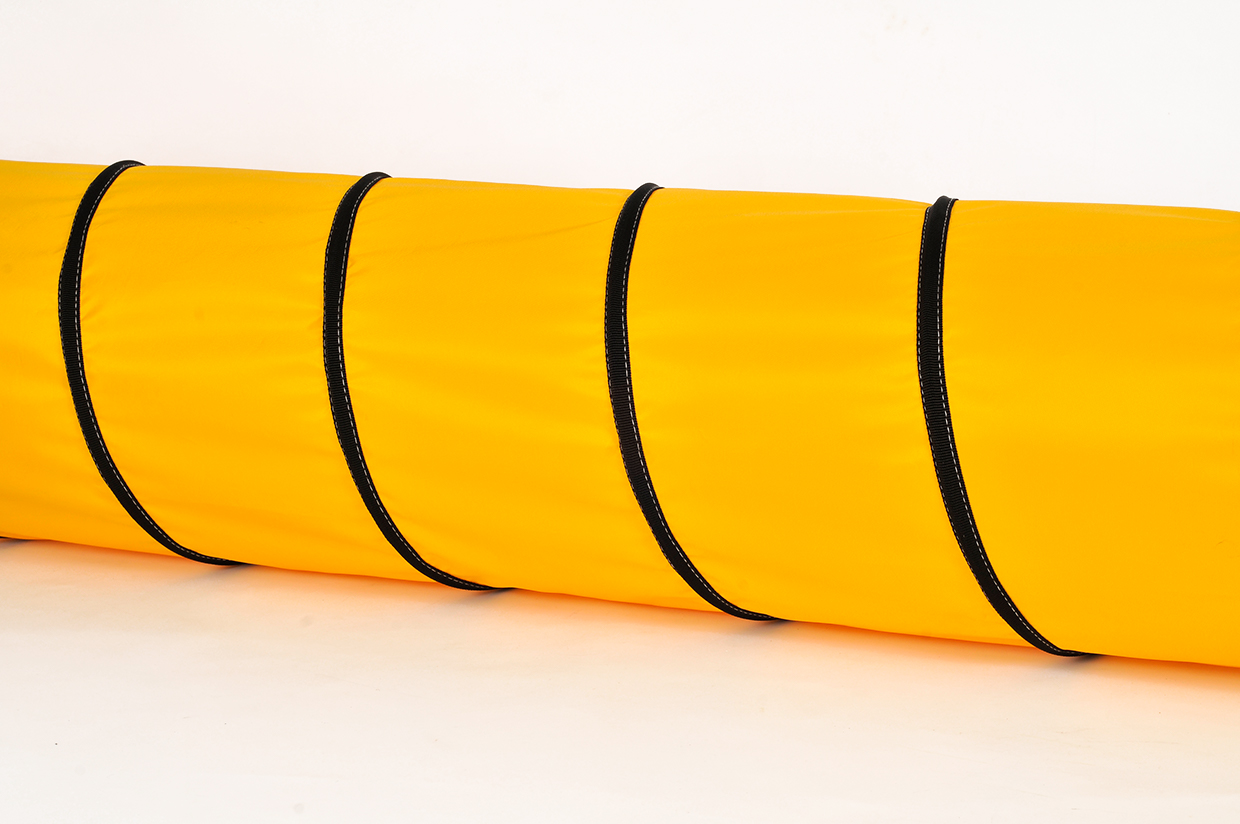

Very lightweight, highly flexible (fan) PVC-free spiral hose for medium temperature range made of PU-coated polyamide fabric with an outer spring steel spiral with scuff protection. A finely crafted specialist sewn product of high quality using high-grade raw materials. Highly suitable for conveying cold or hot air on mobile heating fans and for tent air-conditioning, event-conditioning.

  • Properties
  • Length
  • Application Ranges
  • Further Information
  • PVC-free
  • odourless
  • Flame-retardant according to EN13501 B-s1-d0
  • Lightweight
  • Highly flexible
  • High tensile strength
  • Non-kniking

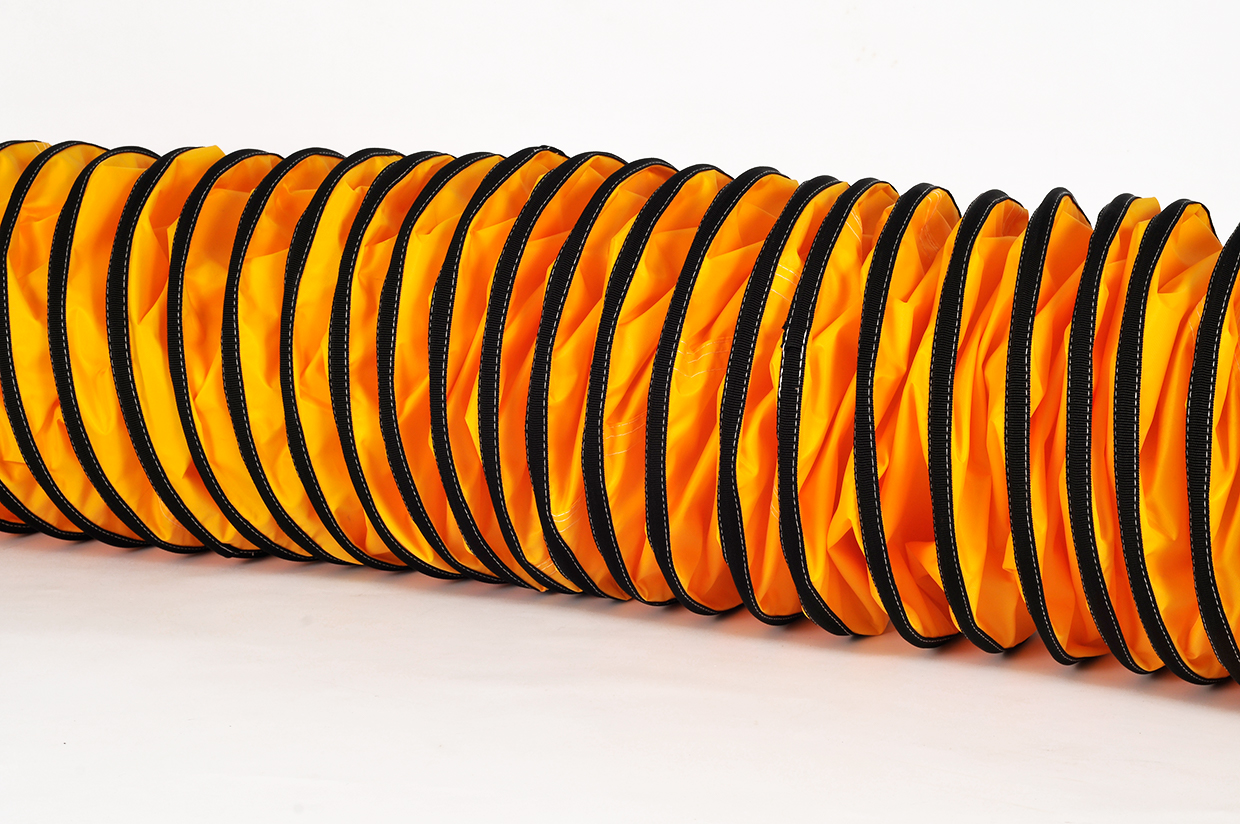

  • High compressibility
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves
hochflexibel besonders zugfest

Standard length: 7,6m. According to specifications

Construction site heating, Drying of buildings, Drying buildings, Drying grain, Blower hose, Hot air, Heating fans, Hay blowers, Fan hose, Air-conditioning and ventilation technology, Drying Technology, Hot air hoses, Wind generator plants, Shipyards, Ventilation, Ventilation, Tent heating, Tent air-conditioning,

Also available upon request as spiralfree or insulated flat hose.
For increased vacuum conditions also tailor-made narrower spiral slopes can be produced.
Also welded types available.
Color: yellow-black, white-black, grey-black.
Extras: end rings instea of end sleeves, hooks or eyelets for suspended installation.

Properties

  • PVC-free
  • odourless
  • Flame-retardant according to EN13501 B-s1-d0
  • Lightweight
  • Highly flexible
  • High tensile strength
  • Non-kniking
  • High compressibility
  • With scuff protection
  • Large diameters available
  • Continuous connection possible
  • Spiral-free sleeves

Length

Standard length: 7,6m. According to specifications

Application Ranges

Construction site heating, Drying of buildings, Drying buildings, Drying grain, Blower hose, Hot air, Heating fans, Hay blowers, Fan hose, Air-conditioning and ventilation technology, Drying Technology, Hot air hoses, Wind generator plants, Shipyards, Ventilation, Ventilation, Tent heating, Tent air-conditioning,

Further Information

Also available upon request as spiralfree or insulated flat hose.
For increased vacuum conditions also tailor-made narrower spiral slopes can be produced.
Also welded types available.
Color: yellow-black, white-black, grey-black.
Extras: end rings instea of end sleeves, hooks or eyelets for suspended installation.

Technical specifications

The requested information is available in the spreadsheet.

Spreadsheet

Inner-Ø
(mm)
Spiral spacing (mm) Bending radius
(mm)
Pressure
(bar)
Vacuum
(bar)
Weight
(kg/m)
Length
(m)
Price
(€/m)
Article-No.
102 50 50 0,300 0,035 0,250 7,6 27,90 € Specification after color choice
127 75 63 0,300 0,035

0,313

7,6 23,84 €
152 100 76 0,300 0,035 0,400 7,6 15,58  €
203 125 102 0,275 0,035 0,530 7,6 20,64 €
229 150 114 0,250 0,021 0,610 7,6 23,21 €
254 175 127 0,225 0,021 0,660 7,6 26,09 €
305 225 153 0,175 0,021 0,800 7,6 22,51 €
356 225 178 0,150 0,021 0,930 7,6 26,19 €
407 225 204 0,125 0,021 1,060 7,6 29,88 €
425 225 213 0,120 0,021 1,130 7,6 31,17 €
457 225 229 0,110 0,021 1,190 7,6 33,48 €
508 225 254 0,100 0,021 1,320 7,6 37,17 €
525 225 263 0,100 0,018 1,450 7,6 38,39 €
600 225 300 0,085 0,014 1,600 7,6 43,81 €
700 225 350 0,700 0,010 1,870 7,6 52,44 €
800 225 400 0,600 0,010 2,100 7,6 59,87 €
900 225 450 0,500 0,010 2,400 7,6 67,30 €
1000 225 500 0,400 0,010 2,670 7,6 74,65 €
